2008-2015 Cadillac CTS-V Radium Fuel Hanger Plumbing Kit

Radium Fuel Hanger Plumbing Kit. Fitment: 2008-2015 Cadillac CTS-V. Available part numbers: 20-1325-03, 20-1325-05.

Choose Your Kit

• Stainless Filter (20-1325-03): 10 micron stainless steel element, cleanable and reusable
• Microglass Filter (20-1325-05): 6 micron microglass element for the finest filtration

Features

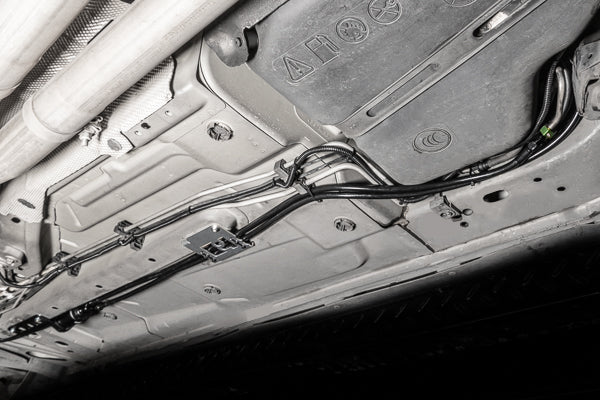

• Dual 6AN PTFE feed lines from fuel hat to filter, sized for the tank-to-unibody gap
• High flow fuel filter with built-in check valve; choice of 10 micron stainless or 6 micron microglass element

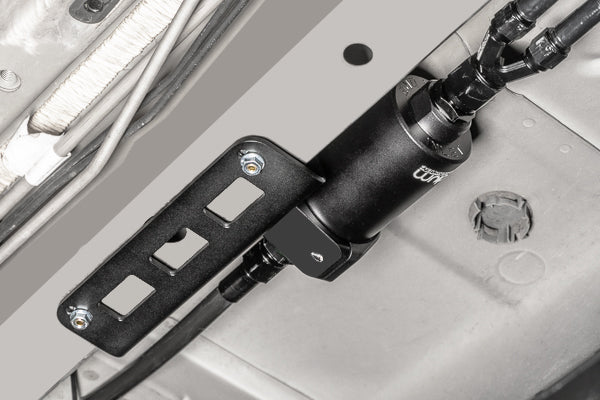

• Anodized bolt-in fuel filter mounting bracket, no permanent vehicle modifications
• Thermal insulating sleeve and billet clamp protecting lines from chafe and header heat

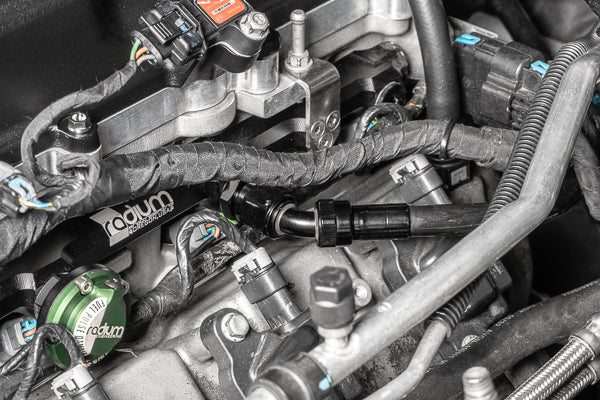

• 8AN PTFE line from filter to LH fuel rail plus 8AN crossover connecting the rails at the front

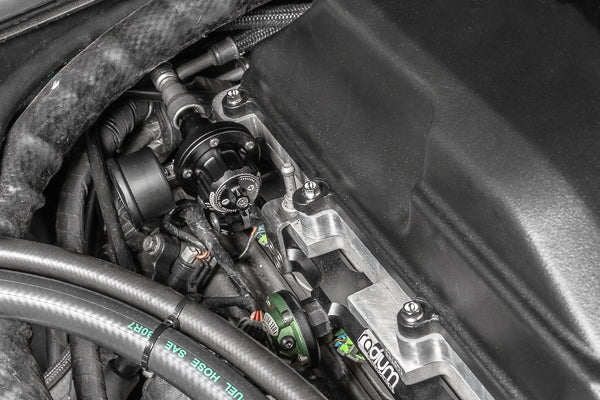

• Fuel pressure regulator and gauge mounting directly to the RH fuel rail
• Aluminum hose retainer bracket; OEM feed line repurposed as the 6AN return to the FPR

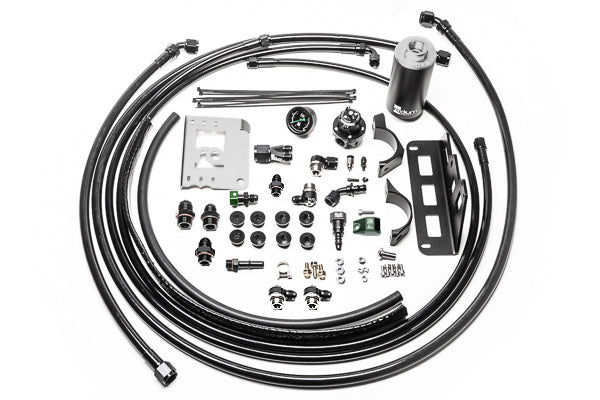

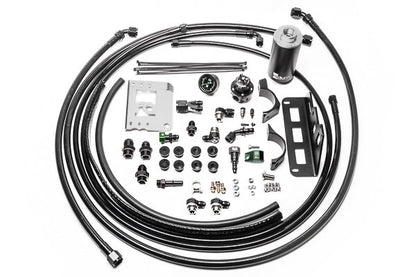

Kit Includes

• Dual 6AN PTFE feed lines and 8AN PTFE feed and crossover lines
• Radium high flow fuel filter with check valve, in the selected element
• Fuel pressure regulator and pressure gauge
• Filter mounting bracket, hose retainer bracket, billet clamp, thermal sleeve, and hardware
• NOT included: the fuel pump hanger (20-1320 / 20-1322), fuel pumps, and the required Radium 20-0362 fuel rails

Applications

• 2008-2015 Cadillac CTS-V with the Radium GM fuel pump hanger and Radium 20-0362 fuel rails

Important Notes

• Radium Engineering 20-0362 fuel rails are required for this kit and are sold separately

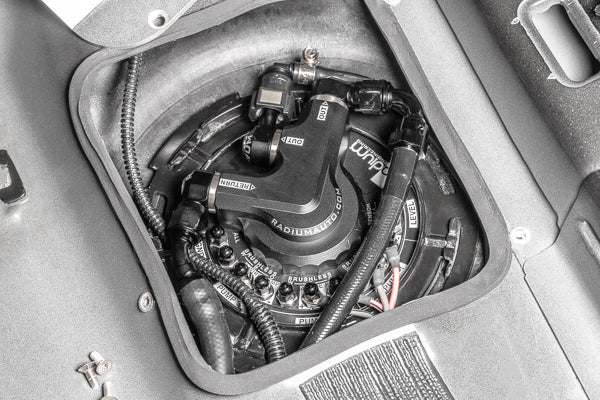

• Designed around the Radium GM fuel pump hanger; not intended for the stock in-tank module
