2008-2015 Mitsubishi Evo X Radium Fuel Pump Hanger

Radium Engineering Fuel Pump Hanger. Fitment: 2008-2015 Mitsubishi Evo X. Available part numbers: 20-1640, 20-1642, 20-1643, 20-1644.

Features

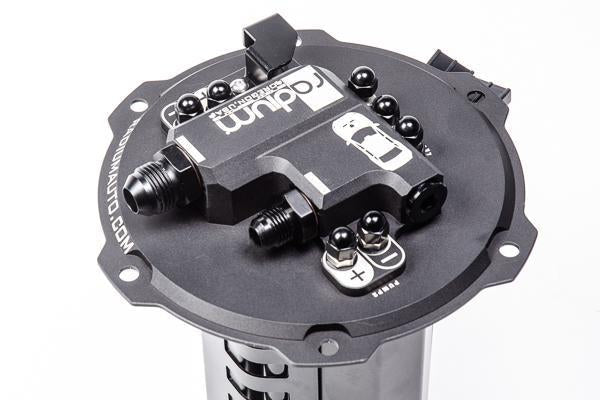

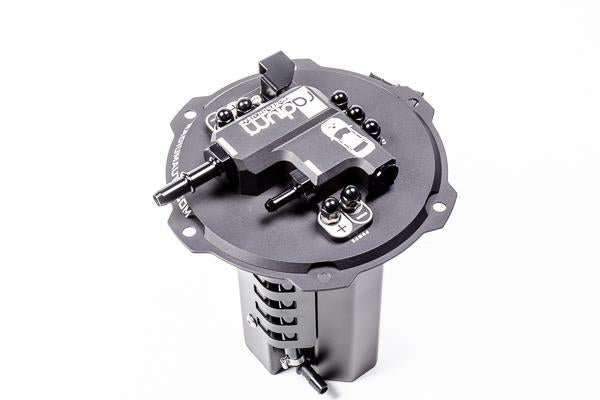

• Billet aluminum construction with 8AN ORB female pump-out port and 6AN ORB female return port
• One-piece anodized aluminum collector box with 355 lph 1-way fill valve, constantly replenished by regulator return flow
• Redesigned venturi jet pump siphon scavenges fuel without restricting high-flow pumps (consumes 15-45 lph depending on fuel pressure)
• 20-1640 fits Walbro GSS342 (255 lph) and AEM 50-1220; 20-1642 fits Walbro F90000267, F90000274, and F90000285
• Adapter fittings included for direct connection to OEM fuel lines or aftermarket 8AN and 6AN hoses
• High-current electrical connections with anti-rotation stainless terminals, stainless hardware and clamps, and alternative fuel compatibility

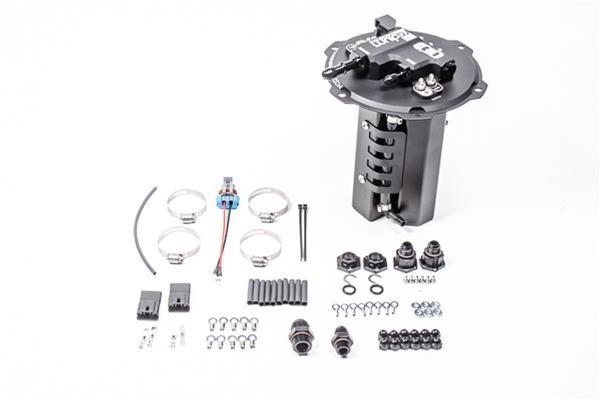

Kit Includes

• 1x Partially assembled Evo X fuel pump hanger (configuration per selection)
• Components to install 1 or 2 compatible fuel pumps (some parts unused depending on setup)
• Sock filters for Walbro pumps (20-1642) and Walbro GSS342 (20-1640); AEM pumps use manufacturer-supplied socks
• Adapter fittings for OEM lines plus 8AN and 6AN AN-style connections
• Electrical parts bag for external wiring
• Fuel pumps NOT included, sold separately

Applications

• 2008-2015 Mitsubishi Lancer Evolution X
• 20-1640: Walbro GSS342 or AEM 50-1220 pumps (1 or 2)
• 20-1642: Walbro F90000267, F90000274, or F90000285 pumps (1 or 2)
