2008-2017 GM LS Cars Radium Fuel Pump Hanger
$569.95 - $617.45
Regular price
$569.95
Regular price
Sale price
$569.95
Unit price
per
Couldn't load pickup availability
Availability:
In stock
SKU:
20-1320
Tags:
- 2008 Cadillac CTS,
- 2008 Cadillac CTS-V,
- 2008 Pontiac G8,
- 2009 Cadillac CTS,
- 2009 Cadillac CTS-V,
- 2009 Chevrolet Caprice,
- 2009 Pontiac G8,
- 2010 Cadillac CTS,
- 2010 Cadillac CTS-V,
- 2010 Chevrolet Camaro,
- 2010 Chevrolet Caprice,
- 2011 Cadillac CTS,
- 2011 Cadillac CTS-V,
- 2011 Chevrolet Camaro,
- 2011 Chevrolet Caprice,
- 2012 Cadillac CTS,
- 2012 Cadillac CTS-V,
- 2012 Chevrolet Camaro,
- 2012 Chevrolet Caprice,
- 2013 Cadillac CTS,
- 2013 Cadillac CTS-V,
- 2013 Chevrolet Camaro,
- 2013 Chevrolet Caprice,
- 2014 Cadillac CTS,
- 2014 Cadillac CTS-V,
- 2014 Chevrolet Camaro,
- 2014 Chevrolet Caprice,
- 2014 Chevrolet SS,
- 2015 Cadillac CTS-V,
- 2015 Chevrolet Camaro,
- 2015 Chevrolet Caprice,
- 2015 Chevrolet SS,
- 2016 Chevrolet Caprice,
- 2016 Chevrolet SS,
- 2017 Chevrolet Caprice,
- 2017 Chevrolet SS,
- Cadillac,
- Chevrolet,
- Fuel Pumps and Install Kits,
- MAP STRICT BRAND,
- Pontiac,
- Radium Engineering
Collections:
Regular price
$569.95
Regular price
Sale price
$569.95
Radium Engineering Fuel Pump Hanger. Fitment: 2008-2017 GM LS Cars. Available part numbers: 20-1320, 20-1322.
Choose Your Version
- Fits AEM 50-1220 / DW440 Brushless (20-1320): also accepts Bosch 0 580 454 100 and several OEM GM pumps; note the Bosch and stock CTS-V pumps have no internal check valve, so run 2 full time with the OEM PCM
- Fits Walbro F90000267/274/285 (20-1322): the Walbro 39/50 DCSS family; Protec 11928, Fuelab 49614, and DW810 fit with the separate 13-1187 brushless pump base
Features

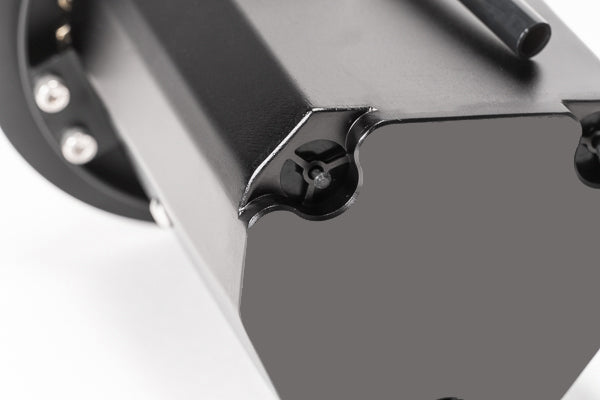

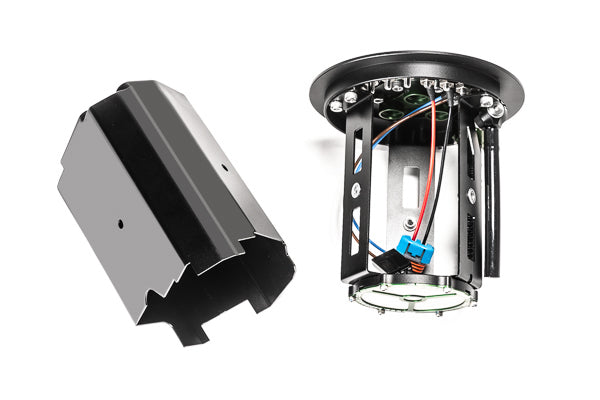

- One-piece anodized aluminum collector box with three 355 LPH FKM one-way fill valves
- Two pump OUT ports tapped 3/4in-16 (8AN ORB); second port ships plugged with a spare 8AN ORB to 6AN male fitting provided
- RETURN port tapped 8AN ORB with 8AN ORB to 6AN male banjo fitting provided
- Two SAE quick connect fittings included to adapt the OEM feed line and internal crossover line across all compatible vehicles
- Redesigned jet pump siphon eliminates the OEM venturi return restriction; consumes 15 to 45 LPH depending on fuel pressure

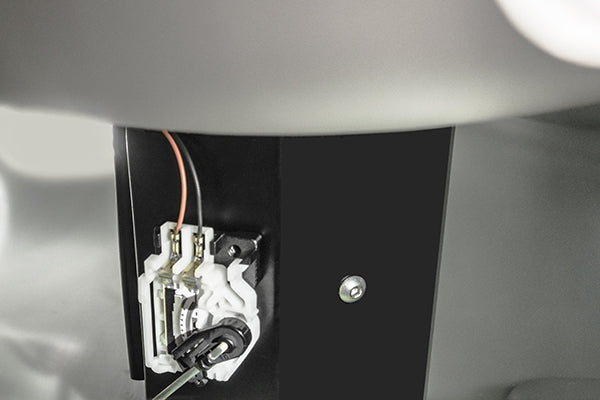

- Two billet aluminum level sensor mounts included to retain the OEM fuel level sender on all compatible vehicles
- Three independent pre-pump filtration chambers; empty ports need no block-off
- Anti-rotation stainless electrical studs with nonconductive acorn nuts; single pump installs can reuse the OEM pump controller wiring

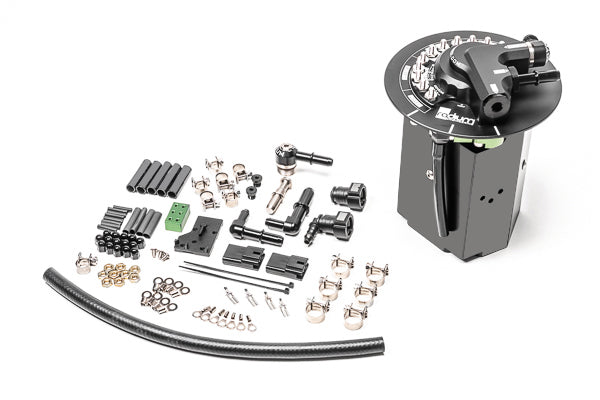

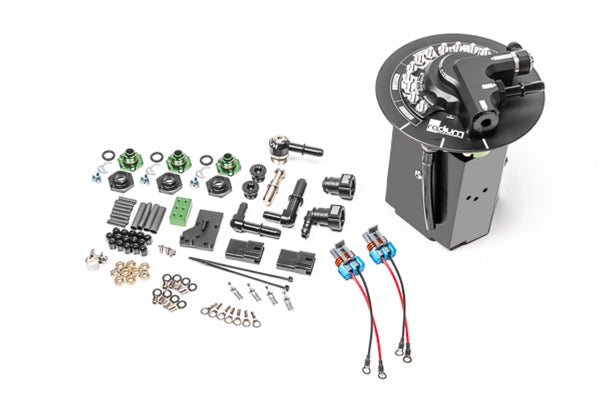

Kit Includes
- 1x fuel pump hanger assembly in the selected pump compatibility version
- SAE quick connect fittings for OEM feed line and crossover line, both vehicle variations
- 8AN ORB to 6AN male fittings for the second outlet and return ports
- Two billet aluminum OEM level sensor mounts
- Electrical hardware for pumps and sensors
- NOT included: fuel pumps, fuel pressure regulator, post-pump fuel filter, pump wiring kits
Applications
- 2008-2014 Cadillac CTS; 2008-2015 Cadillac CTS-V
- 2010-2015 Chevrolet Camaro; 2009-2017 Chevrolet Caprice PPV; 2014-2017 Chevrolet SS
- 2008-2009 Pontiac G8; Holden Commodore VE/VF and Caprice equivalents
Important Notes
- An aftermarket fuel pressure regulator and a low micron post-pump filter are required on every installation; both come in the Radium fuel hanger plumbing kits for the CTS-V (20-1325-03 / 20-1325-05)
- Bosch 0 580 454 100 and stock CTS-V pumps have no internal check valve; run 2 full time with the OEM PCM
- Protec 11928, Fuelab 49614, and DW810 pumps require the 13-1187 pump base to fit the 20-1322 strainer
