2010-2015 Chevrolet Camaro LS3 LS7 L99 Radium Fuel Hanger Plumbing Kit

Radium Fuel Hanger Plumbing Kit. Fitment: 2010-2015 Chevrolet Camaro LS3 LS7 L99. Available part numbers: 20-1326-03, 20-1326-05.

Choose Your Kit

• Stainless Filter (20-1326-03): 10 micron stainless steel element, cleanable and reusable
• Microglass Filter (20-1326-05): 6 micron microglass element for the finest filtration

Features

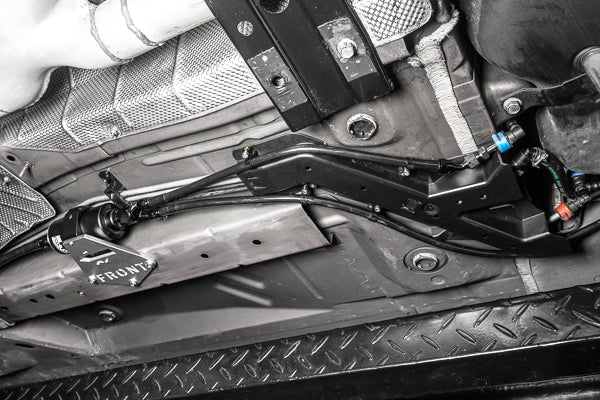

• Dual 6AN PTFE feed lines from fuel hat to filter, sized for the tank-to-unibody gap
• High flow fuel filter with built-in check valve; choice of 10 micron stainless or 6 micron microglass element

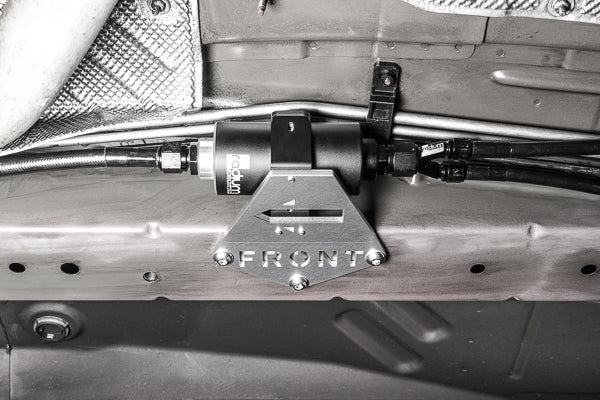

• Camaro-specific fuel filter mount, no permanent vehicle modifications
• 4 green anodized hose retaining adapters with clamps

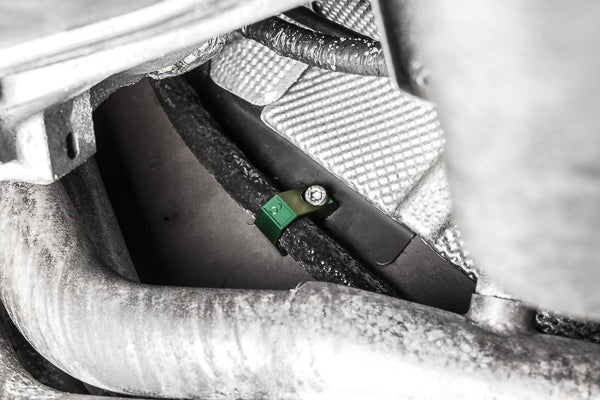

• Thermal insulating sleeve plus a billet aluminum clamp securing the 8AN PTFE hose away from the header
• 8AN PTFE line from the fuel filter feeding the RH fuel rail; FPR and gauge mounting directly to the LH fuel rail
• 6AN PTFE line connecting the FPR return port to the OEM fuel feed hard line

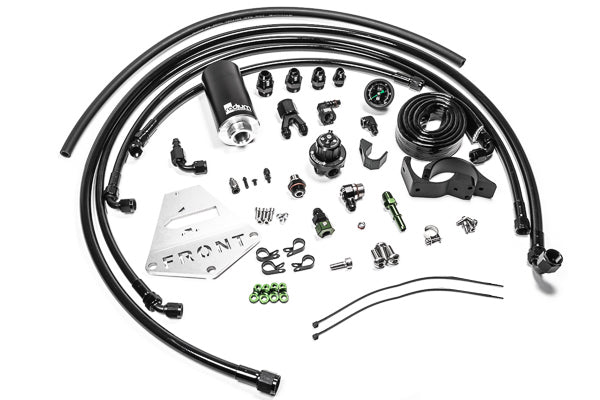

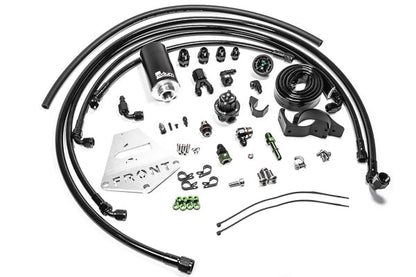

Kit Includes

• Dual 6AN PTFE feed lines, 8AN PTFE rail feed line, and 6AN PTFE FPR return line
• Radium high flow fuel filter with check valve, in the selected element
• Fuel pressure regulator and pressure gauge
• Camaro-specific filter mount, 4 green anodized hose retaining adapters with clamps, billet clamp, thermal sleeve, and hardware
• NOT included: the fuel pump hanger (20-1320 / 20-1322), fuel pumps, and the required Radium fuel rails and fuel rail plumbing kits

Applications

• 2010-2015 Chevrolet Camaro LS3 / LS7 / L99 with the Radium GM fuel pump hanger and Radium fuel rails

Important Notes

• Radium Engineering fuel rails and fuel rail plumbing kits are required for this kit and are sold separately
• Designed around the Radium GM fuel pump hanger; not intended for the stock in-tank module
• For LS3, LS7, and L99 engines; supercharged LSA ZL1 cars use the CTS-V style rail hardware and are not listed by Radium for this kit
