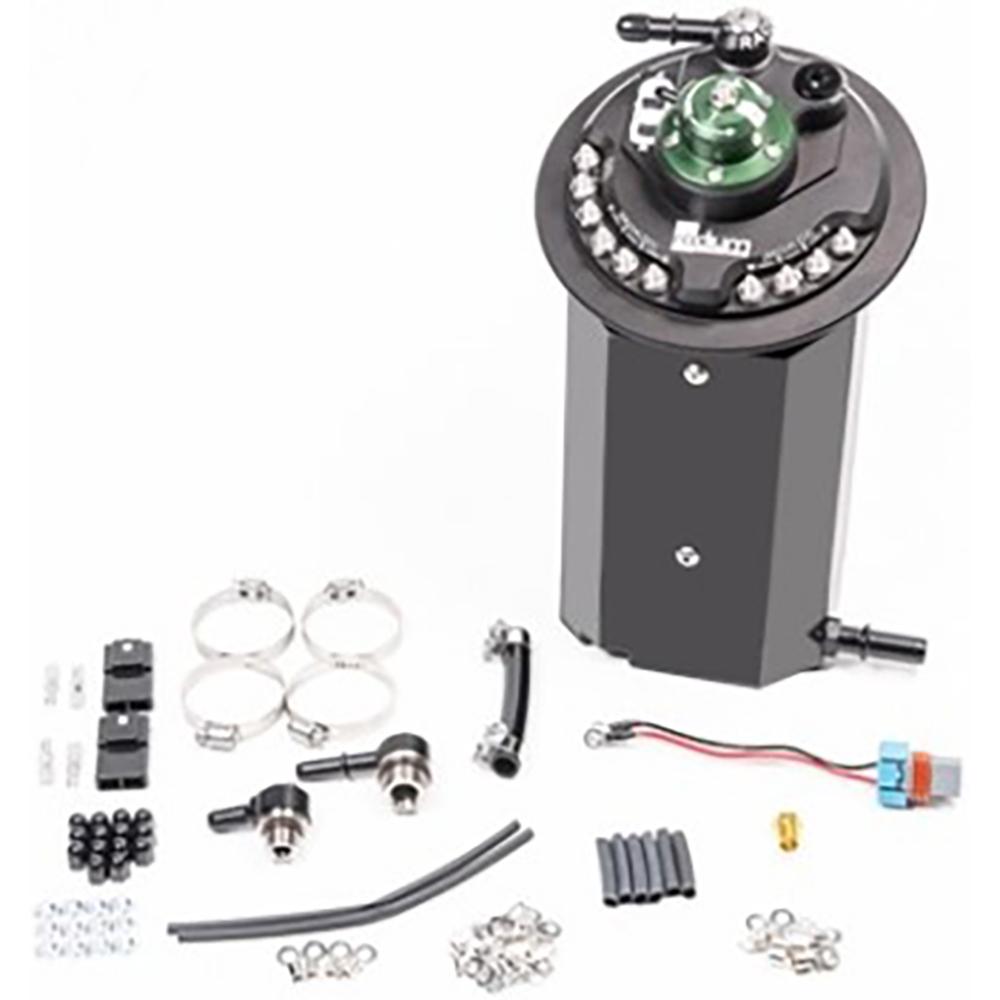

2011-2021 Ford Mustang Radium Fuel Pump Hanger

Radium Engineering Fuel Pump Hanger. Fitment: 2011-2021 Ford Mustang. Available part numbers: 20-1800, 20-1801, 20-1802.

Features

• Drop-in hanger for 2011+ Mustang/Shelby (S197/S550); 1 or 2 pumps; integrated 1:1 FPR
• Three versions by pump: 20-1800 (Walbro GSS342, AEM 50-1200), 20-1801 (Ti Automotive E5LM brushless, incl. 2 bolt-on check valves), 20-1802 (Walbro F90000267/274/285, DW400)
• Outlet: 8AN ORB female with two low profile SAE quick connect fittings provided (S197 and S550 use different feed connections); changeable to 8AN ORB fittings
• Return port: 6AN ORB female, plug preinstalled; used only with the optional 20-0806 FPR Block-Off return conversion
• Collector box with venturi jet pump scavenge and dual 355LPH one-way fill valves
• E85 and alternative fuel compatible; pumps NOT included and do not come pre-installed

Kit Includes

• 1x Fuel pump hanger with integrated FPR and collector box
• 2x Low profile SAE quick connect outlet fittings (S197 and S550 styles)
• High current electrical hardware; stainless hardware; version-specific components (check valves on 20-1801)
• Fuel pumps and downstream filter NOT included

Applications

• 2011-2021 Ford Mustang, all (S197/S550), incl. Shelby GT350 and 2013-2014 / 2020+ GT500
• Version by pump: 20-1800 GSS342/AEM 50-1200; 20-1801 Ti E5LM brushless; 20-1802 Walbro 450 family/DW400
• Downstream low micron filter REQUIRED (Radium 20-0220-03/-05)
