2014-2019 Chevrolet Corvette C7 LT1 Radium Catch Can Kits

Radium Engineering Catch Can Kits. Fitment: 2014-2019 Chevrolet Corvette C7 LT1. Available part numbers: 20-0987-FL, 20-0986-FL, 20-1286-FL, 20-0985-FL.

Choose Your Kit

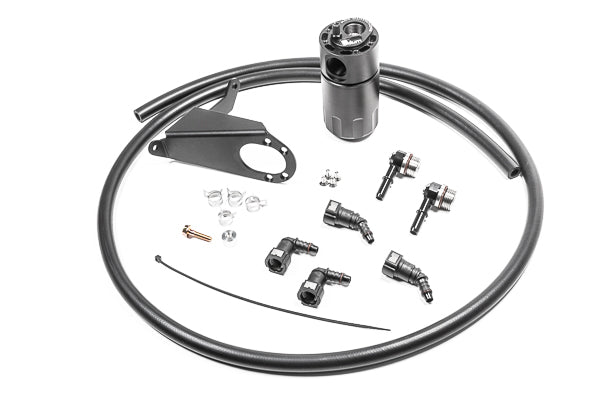

• PCV Catch Can Kit (20-0985-FL): single can inline between the PCV valve and the intake manifold, brackets to the LH side of the radiator on OEM threaded holes. Fits all 14-19 C7 LT1, wet or dry sump.

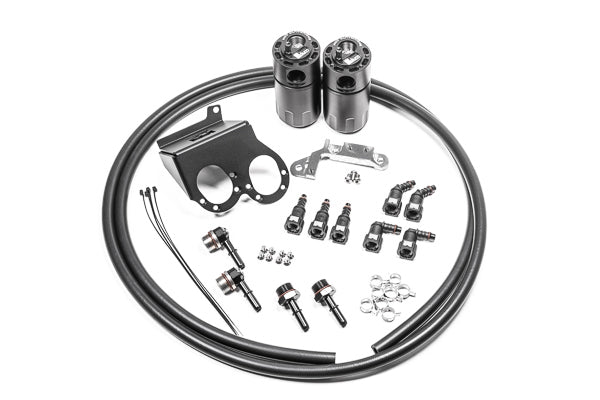

• Dual CCV Catch Can Kit (20-0986-FL): two cans on the crankcase vents, front LH of the engine. Fits 14-19 wet sump and 14-16 dry sump.

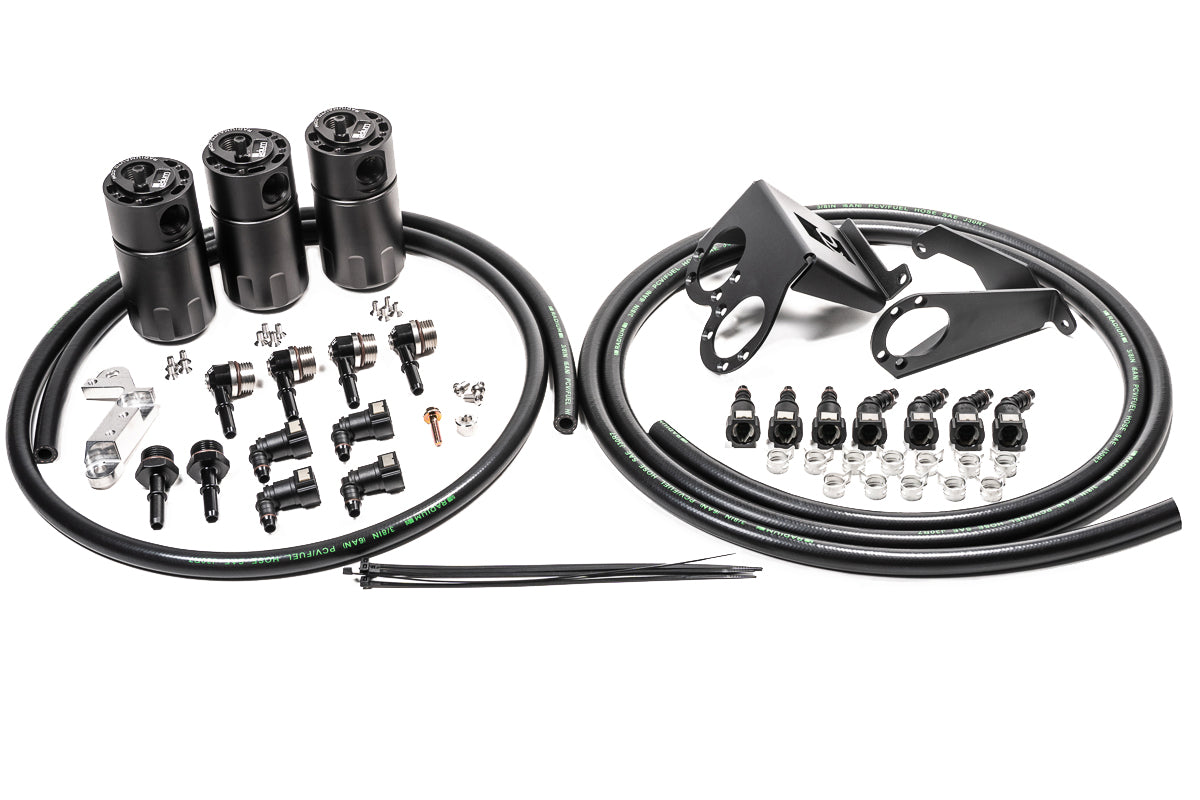

• Triple Catch Can Kit (20-0987-FL): the PCV and dual CCV kits together, the complete answer. Fits 14-19 wet sump and 14-16 dry sump.

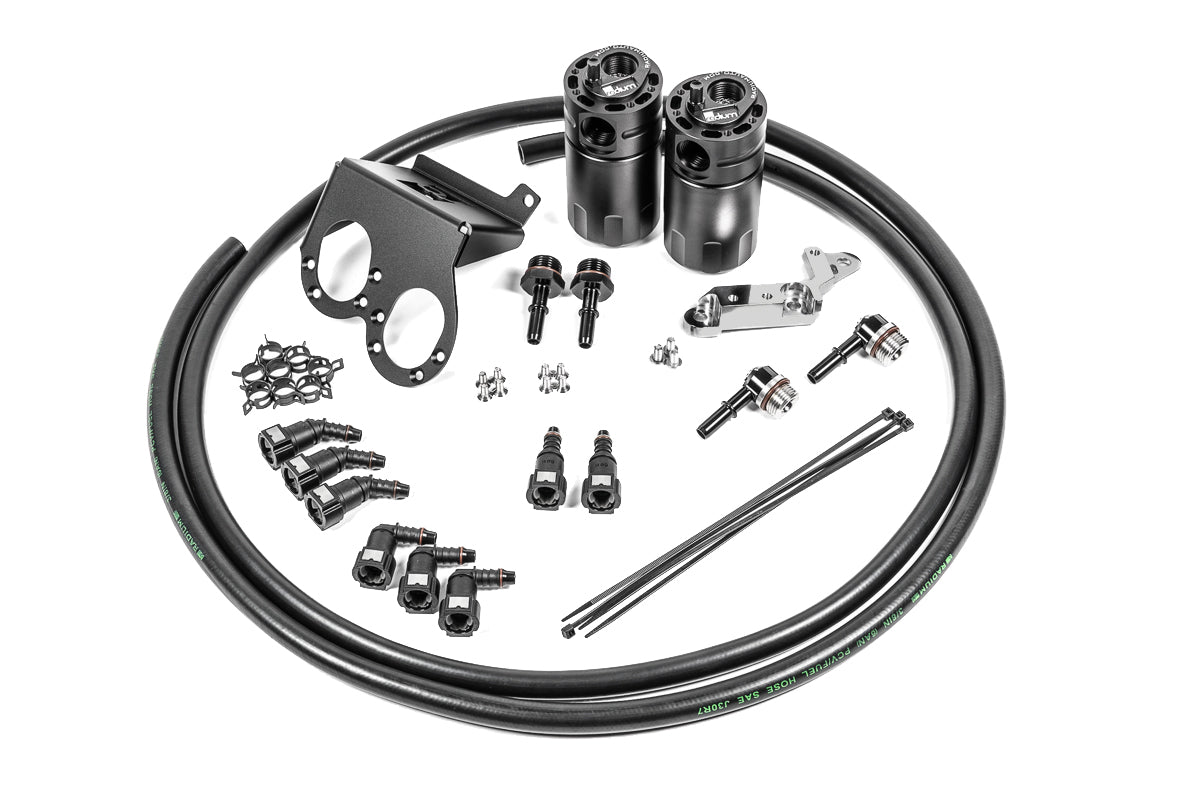

• Dual Catch Can Kit, 17-19 Dry Sump (20-1286-FL): PCV and CCV cans for the revised 17-19 dry sump system.

Features

• Patented Fluid Lock system that traps collected fluid and prevents reservoir overfill
• 7 fluid ounce capacity with O-ring sealed dipstick
• Large 10AN ORB inlet and outlet ports, 4AN ORB drain port
• 2-step oil separation baffling with integrated condenser
• Anodized aluminum brackets and stainless mounting hardware
• SAE quick connect fittings, 3/8in PCV rubber hose, and spring clamps
• Direct fitment, no drilling required

Kit Includes

• Baffled oil catch can(s) with integrated condenser and dipstick
• Anodized aluminum mounting bracket(s)
• Polished billet aluminum ground plate (CCV, triple, and 17-19 dry sump kits)
• SAE quick connect fittings, 3/8in PCV rubber hose, and spring clamps
• Stainless mounting hardware

Applications

• 2014-2019 Chevrolet Corvette C7 with the LT1 engine, wet sump: all four kits per selection
• 2014-2016 C7 LT1 dry sump: 20-0985-FL, 20-0986-FL, and 20-0987-FL
• 2017-2019 C7 LT1 dry sump: 20-0985-FL and 20-1286-FL

Important Notes

• Dry sump fitment splits at 2017: the 20-0986-FL and 20-0987-FL do not cover 17-19 dry sump cars, which use the 20-1286-FL
• The optional petcock drain kit allows draining in place where there is clearance below the can
