2015+ Ford Mustang S550 S650 Radium Fuel Filter Kit

Radium Fuel Filter Kit. Fitment: 2015+ Ford Mustang S550 S650. Available part numbers: 20-1819-03, 20-1819-05, 20-1829.

Choose Your Kit

• Stainless filter (20-1819-03): complete kit with stainless element, hoses, and fittings
• Microglass filter (20-1819-05): complete kit with microglass element for finer filtration
• Mount only (20-1829): heat shield bracket and filter clamp, for builds sourcing their own filter and running custom plumbing

Features

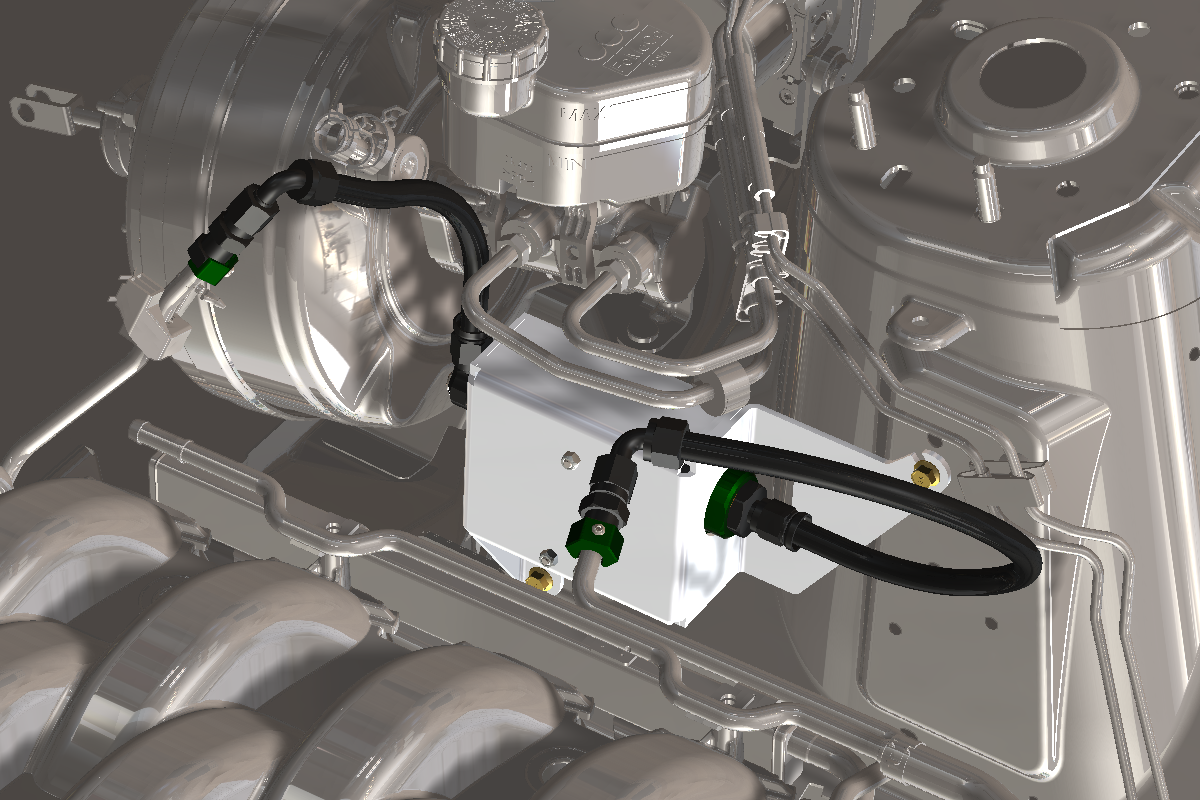

• Powder coated aluminum heat shield bracket mounting to OEM threaded holes
• Two-piece anodized billet aluminum filter clamp
• Billet aluminum filter with selectable element
• SAE quick connect to 6AN adapter fittings
• Two 6AN PTFE fuel lines
• 5/16in EVAP line with hose ends and spring clamps
• SAE disconnect tool and stainless steel hardware
• Filters withstand methanol, ethanol, and E85

Kit Includes

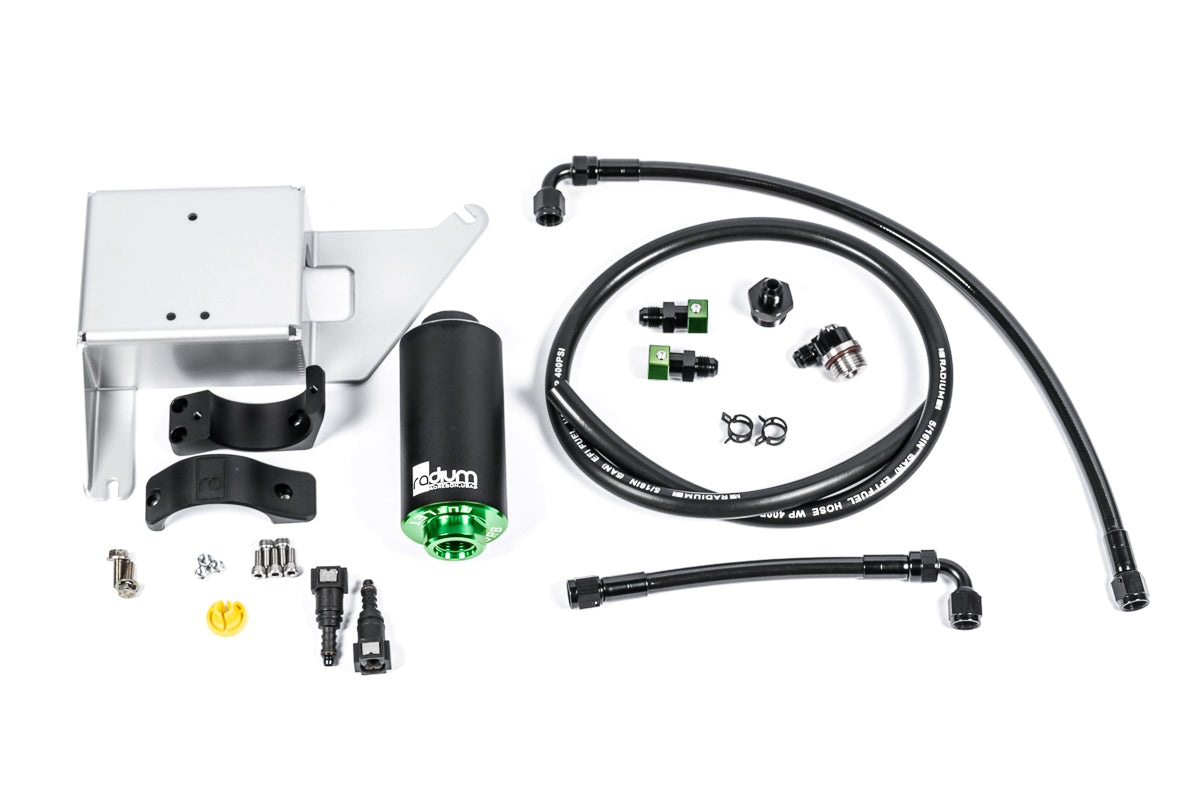

• Complete kits: billet filter with selected element, powder coated heat shield bracket, 2pc billet filter mount, SAE quick connect to 6AN fittings, two 6AN PTFE lines, 5/16in EVAP line and hose ends, spring clamps, hex head flanged screws, stainless hardware, SAE disconnect tool

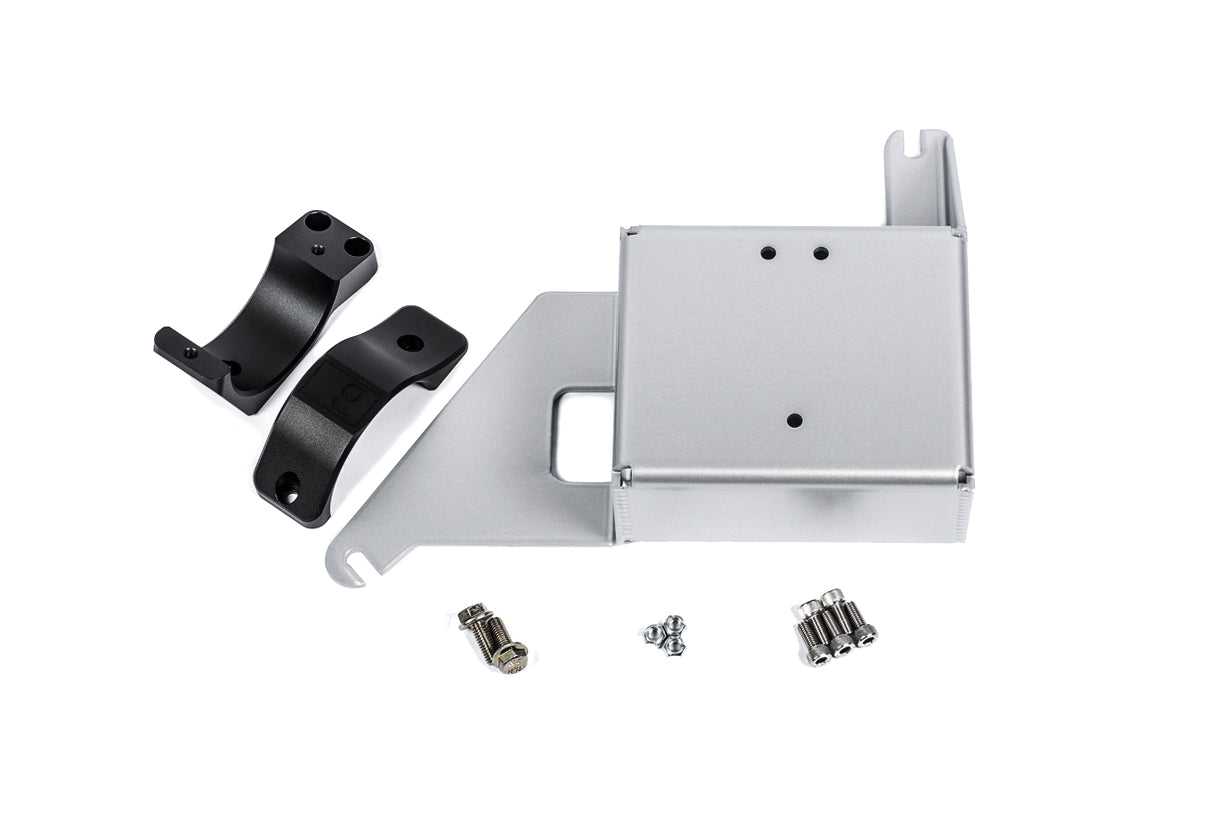

• Mount only: powder coated heat shield bracket, 2pc billet filter mount, hex head flanged screws, stainless hardware
• NOT included on the mount-only option: fuel filter, hoses, and fittings

Applications

• 2015-2023 S550 Ford Mustang, all trims
• 2024 and newer S650 Ford Mustang, all trims

Important Notes

• NOT compatible with RHD Mustangs
• On manual transmission cars, the 2-bolt flange clutch line bracket needs to be moved slightly to clear the fuel filter inlet fitting
• Designed for cars running an aftermarket fuel pump hanger, which removes the OEM post-pump filter
