2017-2021 Honda Civic Type-R FK8 Radium Fuel Hanger Plumbing Kit

Radium Fuel Hanger Plumbing Kit. Fitment: 2017-2021 Honda Civic Type-R FK8. Available part numbers: 20-1085-03, 20-1085-05.

Choose Your Kit

• Stainless Filter (20-1085-03): 10 micron stainless element, cleanable and reusable
• Microglass Filter (20-1085-05): 6 micron microglass element for the finest filtration

Features

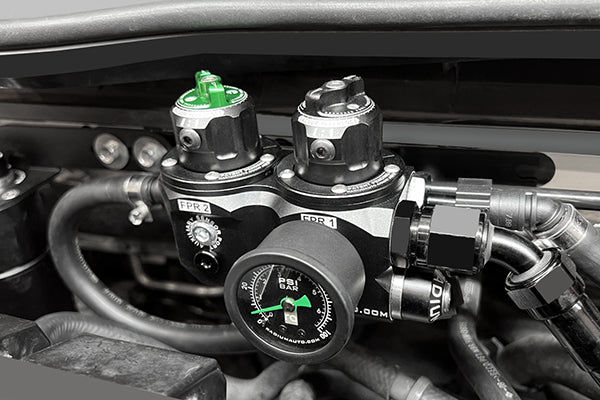

• DFPR dual fuel pressure regulator with two independent outputs: black knob calibrates the OEM direct injection LPFP feed with the included 0-100 psi gauge, green knob governs the auxiliary port injection outlet

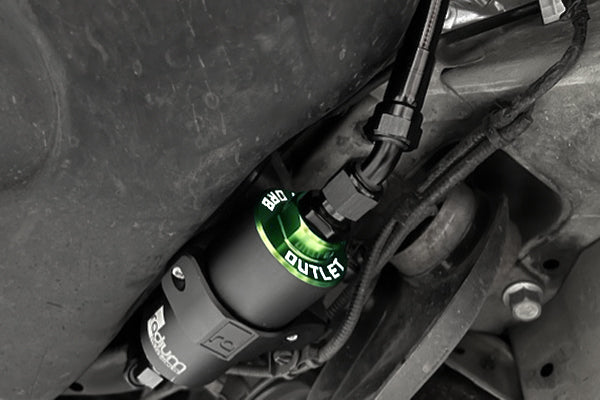

• Radium high flow fuel filter with integrated 2-piece billet tank-side mount
• 8AN PTFE fuel feed hoses and 8AN filter adapter fittings

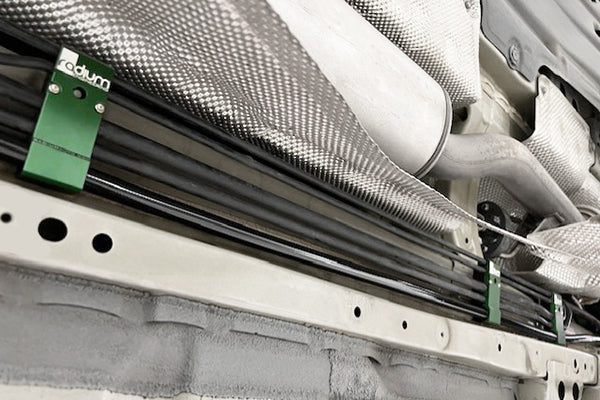

• Three billet aluminum fuel and brake line retainers replacing the OEM plastic clips

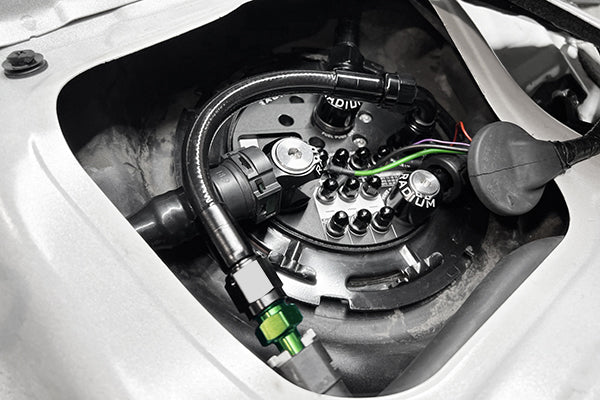

• 6AN EFI hose and SAE quick connect adapters converting the OEM feed line into the return, plus 6AN PTFE and a quick connect at the rear for the hanger's return port
• 8AN ORB plug for the unused port injection outlet, 5/32 inch vacuum tubing, misc adapter fittings, stainless hardware

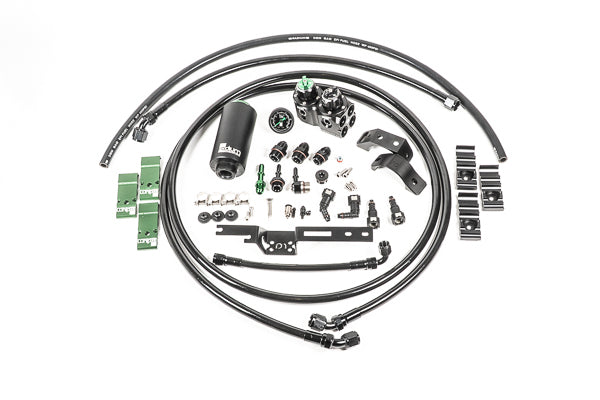

Kit Includes

• DFPR fuel pressure regulator and 0-100 psi fuel pressure gauge
• Radium fuel filter in the selected element with billet mount
• 8AN PTFE feed hoses, 8AN filter adapter fittings, 8AN and 6AN fuel hanger fittings
• Three fuel and brake line retainers, SAE quick connect adapters, 5/32 inch vacuum tubing, misc adapter fittings, stainless steel hardware
• NOT included: the fuel pump hanger (20-1080 / 20-1082), fuel pumps, and the port injection system with its DFPR adapter fitting and line

Applications

• 2017-2021 Honda Civic Type-R FK8 with the Radium 2016+ Civic fuel pump hanger

Important Notes

• Tested and installed on the FK8 Type-R only; it may fit other untested 2016+ Civic models, but fitment is not verified by Radium
• Not for the 2023+ FL5 Type-R; the matching Radium hangers also exclude the FL5
