2017+ Honda Civic Type-R Radium Catch Can Kits

Radium Catch Can Kits. Fitment: 2017+ Honda Civic Type-R. Available part numbers: 20-0424, 0825-FL.

Features

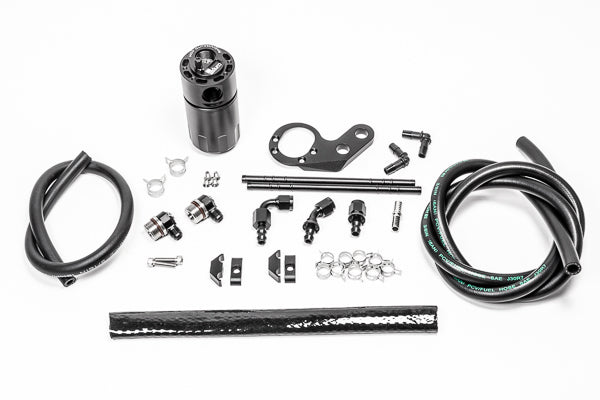

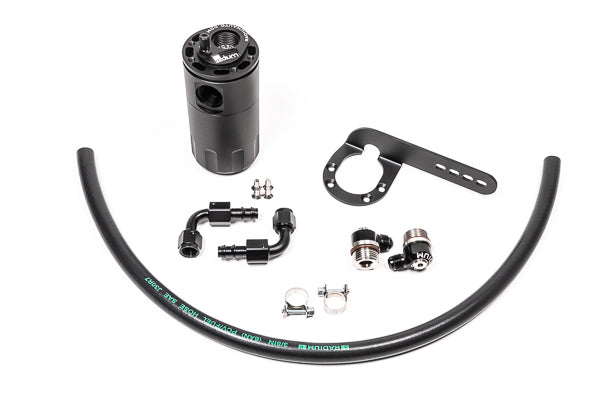

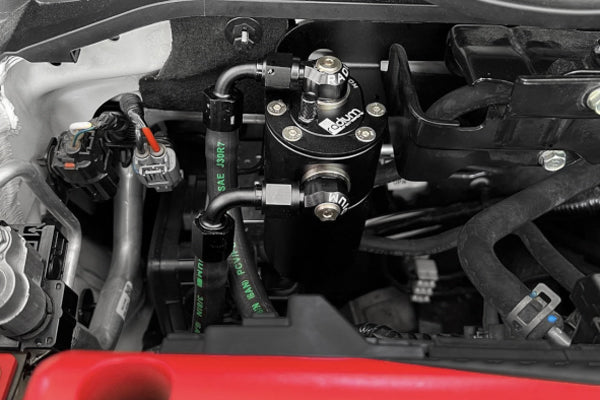

• 20-0424-FL PCV kit: secures to the RH firewall with no modifications, inline with the PCV valve, retaining factory valve function (LHD only)

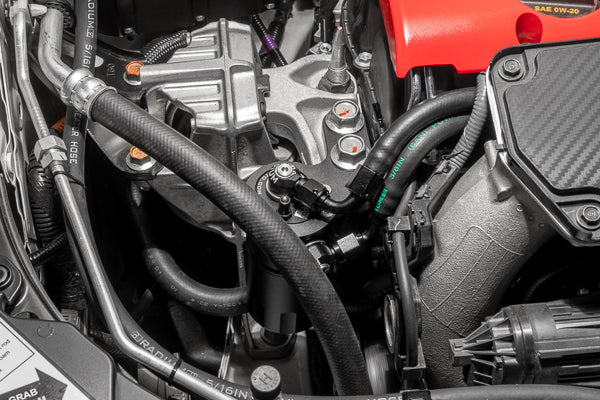

• 20-0825-FL CCV kit: fits under the OEM engine cover on the RH motor mount, inline with the crankcase vent port; aftermarket motor mounts may need minor modification

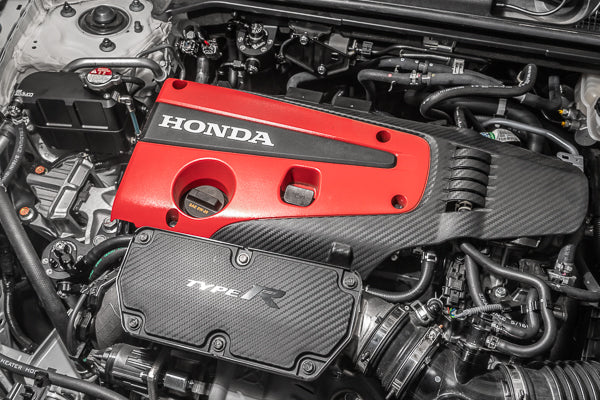

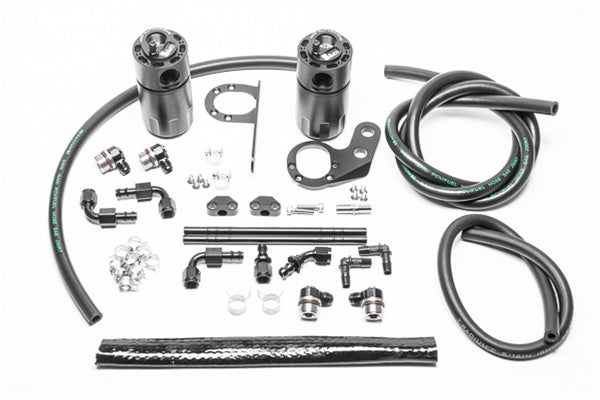

• 20-0826-FL dual kit: both cans for full crankcase coverage

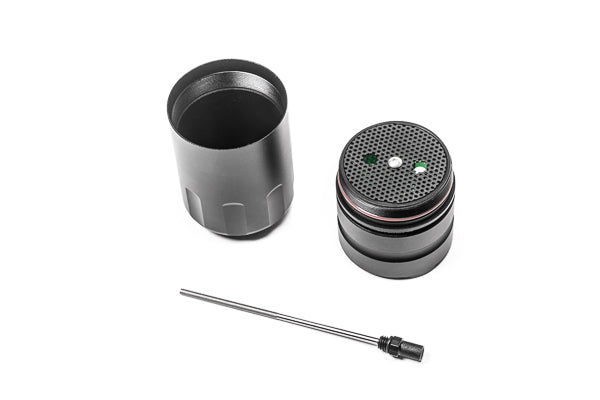

• Anodized Fluid Lock catch cans with integrated condenser and dipstick
• Anodized aluminum FK8/FL5-specific mounting brackets, AN adapter fittings and hose ends, PCV hose with extra for custom applications, stainless hardware
• Mounts using factory holes and integrates with surrounding components

Kit Includes

• Selected configuration: PCV kit, CCV kit, or dual kit with both cans
• Anodized Fluid Lock catch can(s) with integrated condenser and dipstick
• FK8/FL5-specific anodized mounting bracket(s), AN fittings, hose ends, and PCV hose
• Stainless steel mounting hardware

Applications

• 2017-2021 Honda Civic Type-R FK8 (PCV kit: LHD only)
• 2023-2024 Honda Civic Type-R FL5 (PCV kit: LHD only)
• CCV kit: minor modification possible with aftermarket motor mounts
