2020-2026 Toyota GR Supra Radium Catch Can Kits

Radium Engineering Catch Can Kits. Fitment: 2020-2026 Toyota GR Supra. Available part numbers: 20-0749, 0, 1.

Features

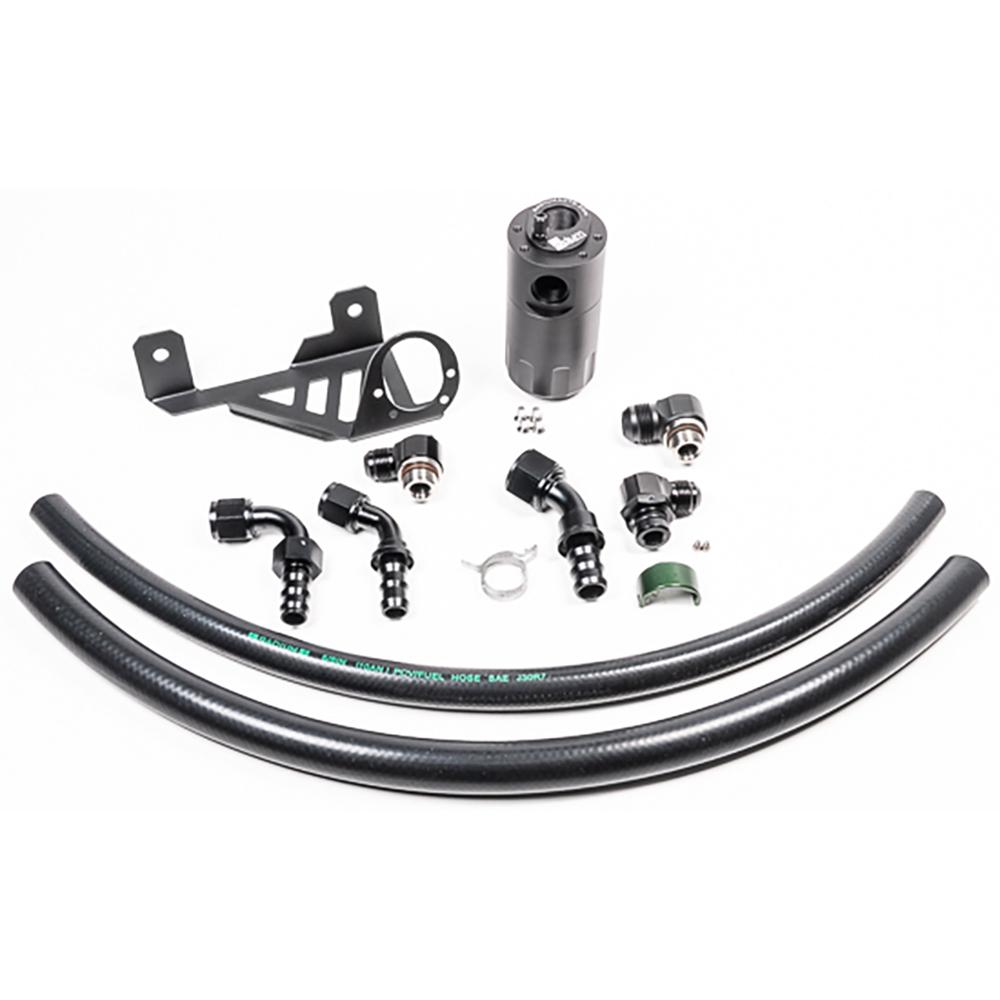

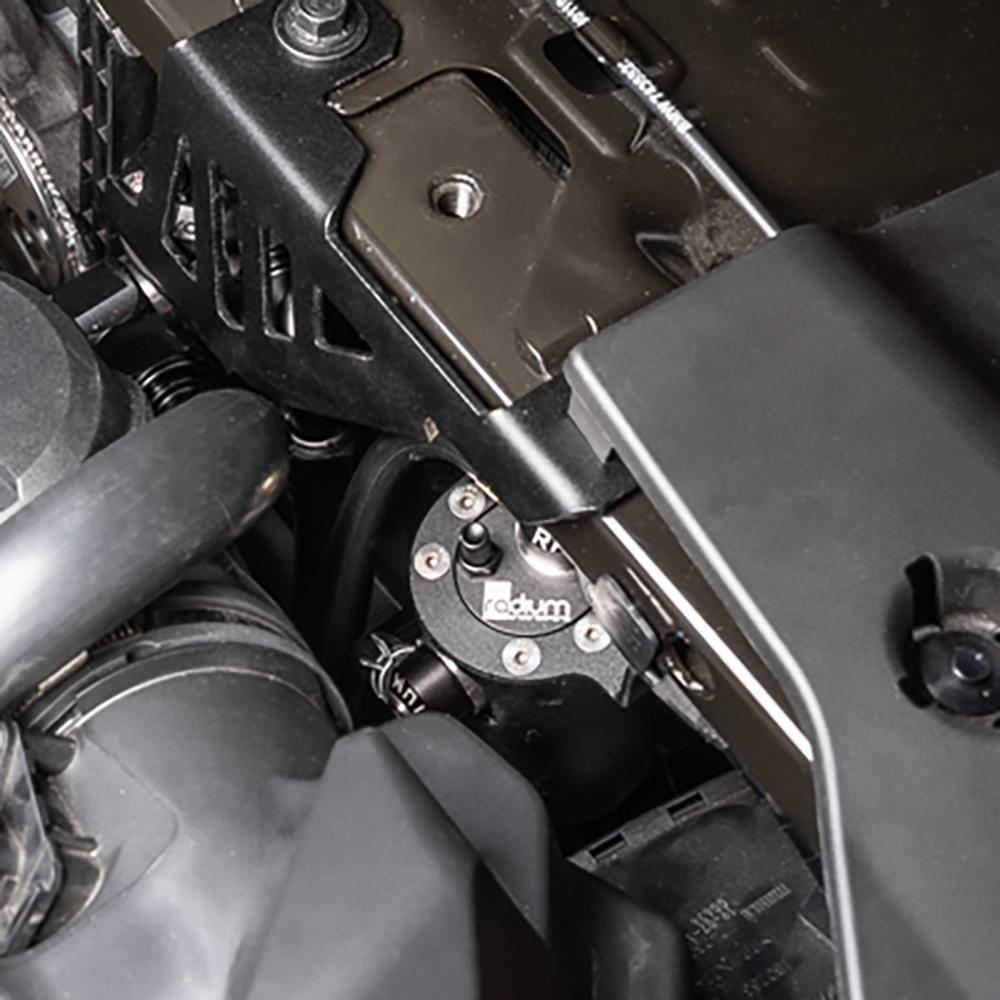

• 20-0749-FL PCV kit: inline between the ventilation valve and intake pipe, mounting to front radiator support bosses; traps metered crankcase vapor, unspent fuel, and oil sludge

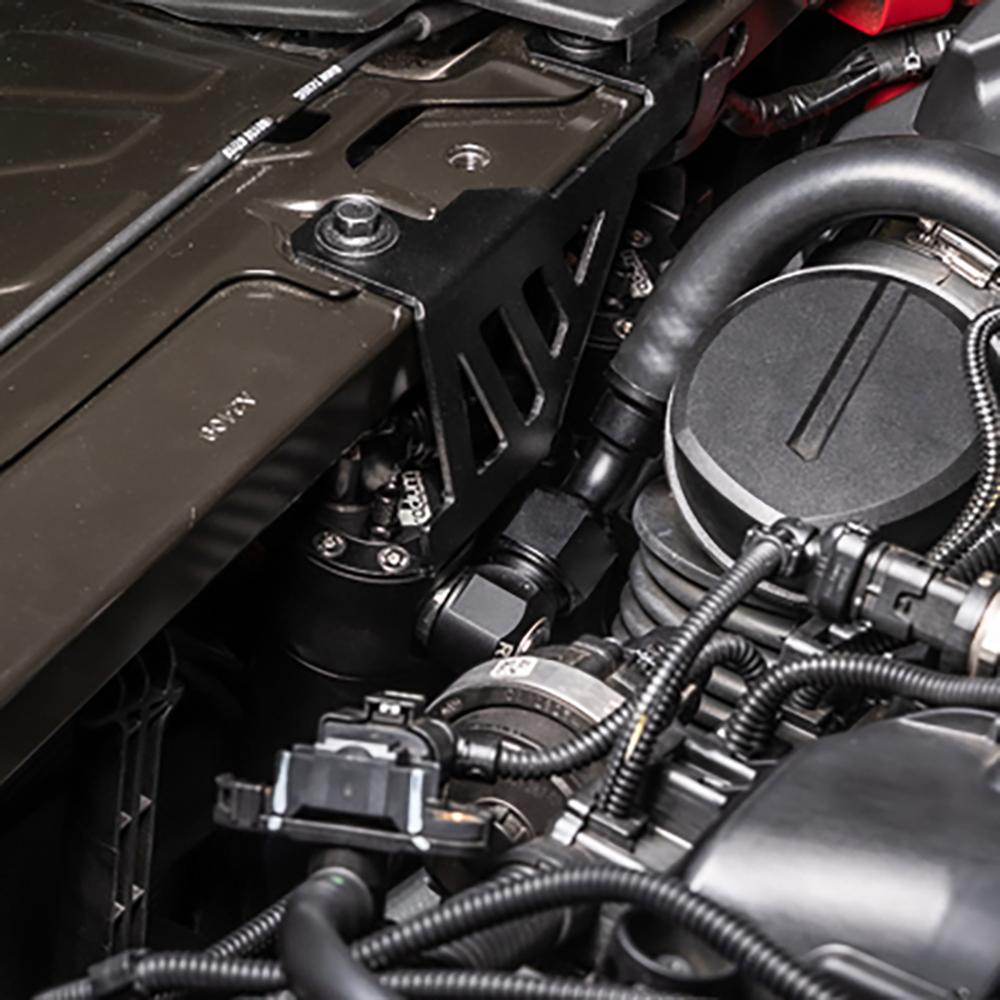

• 20-0750-FL CCV kit: mounts to 2 holes on the front radiator support, catching high-load crankcase flow before the intake system

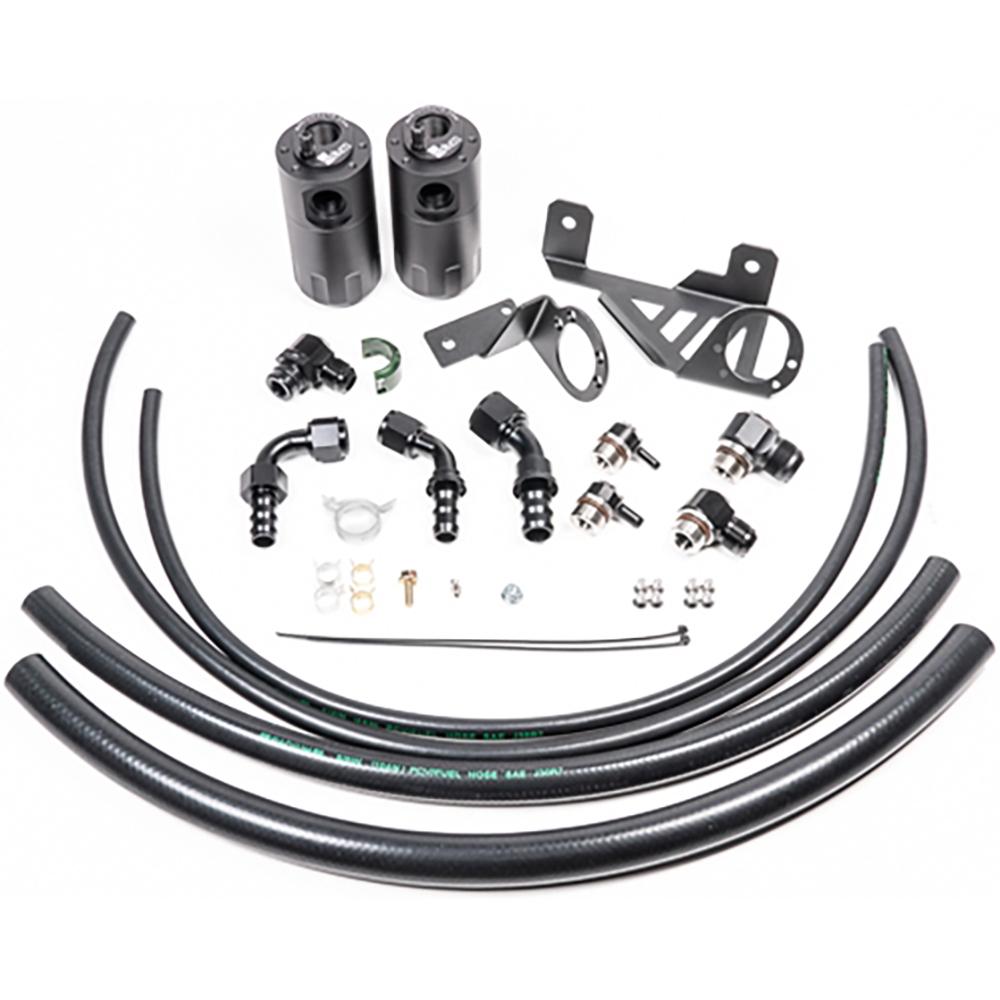

• 20-0751-FL dual kit: both cans for full coverage
• Fluid Lock cans: 10AN ORB ports, 4AN ORB drain port, 2-step oil separation baffling, O-ring sealed dipstick
• Pressure sealed, so no extra inline check valve is required
• Baffled can, MK5-specific bracket, AN adapter fittings and hose ends, stainless hardware, and Radium PCV hose in every kit

Kit Includes

• Selected configuration: PCV kit, CCV kit, or dual kit
• Baffled Fluid Lock catch can(s) with O-ring sealed dipsticks
• MK5 GR Supra specific mounting bracket(s)
• AN adapter fittings and hose ends, Radium PCV hose, stainless steel hardware

Applications

• 2020+ Toyota GR Supra MK5, turbocharged 3.0L B58 ONLY
• All models, trims, RHD and LHD
• PCV and CCV kits recommended together; each addresses only its own circuit
