6AN 8AN 10AN Radium Universal Single Fluid Lock Catch Can Kit

Radium Universal Single Fluid Lock Catch Can Kit. Fitment: 6AN 8AN 10AN. Available part numbers: 20-1810-FL, 20-1808-FL, 20-1806-FL.

Choose Your Kit

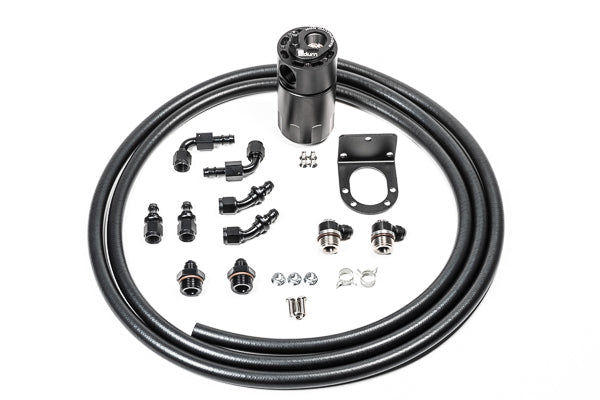

• 6AN kit (20-1806-FL): for engines running 3/8in (10mm) crankcase vent lines

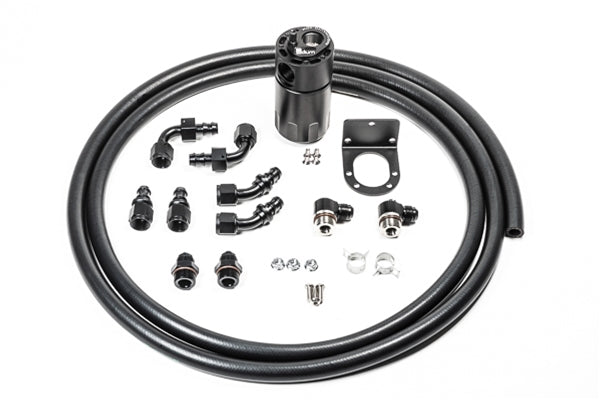

• 8AN kit (20-1808-FL): for engines running 1/2in (13mm) vent lines

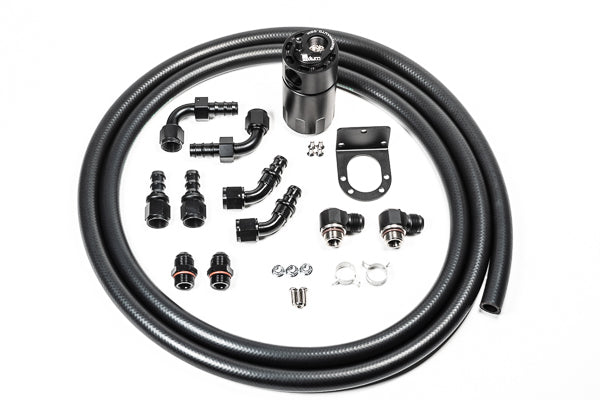

• 10AN kit (20-1810-FL): for engines running 5/8in (16mm) vent lines

Features

• Patented Fluid Lock catch can machined from solid 6061 aluminum
• Both halves and all ports O-ring sealed, safe for forced induction
• 10AN ORB (7/8in female) main inlet and outlet ports
• Integrated dipstick for checking fluid level
• Two banjos and two straight male fittings in the selected size
• Six PushLok hose ends per kit: two straight, two 45 degree, two 90 degree
• 10ft of PCV hose, spring clamps, aluminum bracket, and stainless hardware

Kit Includes

• 1x Fluid Lock oil catch can with dipstick
• 2x 10AN ORB to male banjos in the selected size
• 2x 10AN ORB to male fittings in the selected size
• 2x PushLok straight, 2x 45 degree, and 2x 90 degree hose ends
• 2x spring clamps sized to the hose
• 1x aluminum mounting bracket, 3x stainless M6x1mm bolts, 3x flanged M6x1mm nuts
• 10ft PCV hose in the selected size
• 1x service interval decal

Applications

• Universal, any vehicle without a dedicated Radium catch can kit
• Suitable for naturally aspirated and forced induction engines

Important Notes

• Measure your engine's crankcase vent line diameter before ordering to select the correct kit
• A variety of fittings is supplied so optimum routing can be achieved; some will not be used
