GM LS7 / LS1 LS2 LS3 LS6 L76 L99 Radium Fuel Rails and Plumbing Kit

Radium Fuel Rails and Plumbing Kit. Fitment: GM LS7 / LS1 LS2 LS3 LS6 L76 L99. Available part numbers: 20-0361, 20-0232-PK.

Choose Your Part

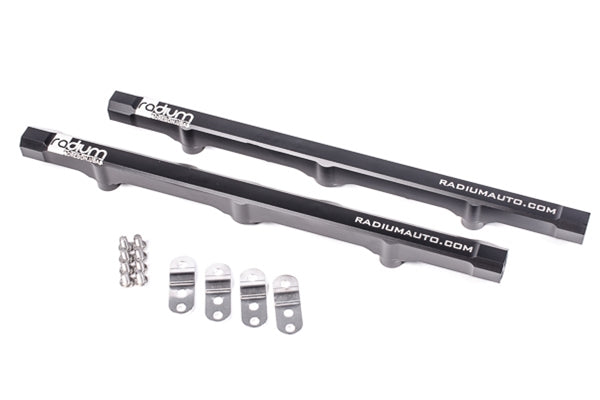

• Fuel rails, GM LS7 (20-0361)

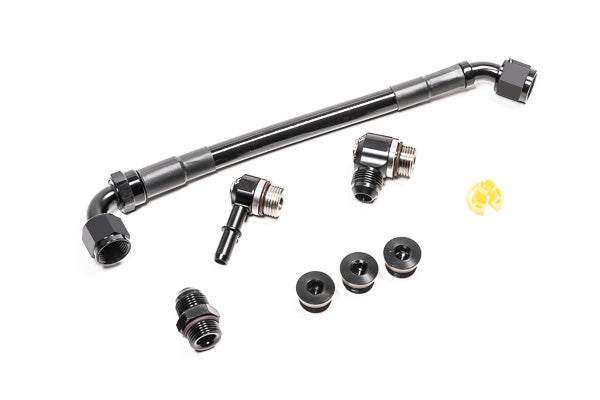

• Fuel rail plumbing kit, LS1 / LS2 / LS3 / LS6 / L76 / L99 (20-0232-PK)

Features

• CNC machined extruded 6063 aluminum, black anodized and laser etched
• 0.69in internal bore
• All end ports tapped 8AN ORB (3/4-16 female)
• Lower centre ports also tapped 8AN ORB for optional adapters
• 14mm ID injector bores accepting factory injectors
• Provisions for the factory injector clips
• Polished stainless steel mounts using the factory hardware
• Compatible with all fuel types including E85

Kit Includes

• 20-0361: black anodized laser etched aluminum fuel rails (x2), stainless steel mounting feet (x4), stainless steel hardware (x8)
• 20-0232-PK: fittings and lines to plumb LS1/LS2/LS3/LS6/L76/L99 rails
• NOT included: AN fittings and fuel injectors

Applications

• 20-0361: 2006-2013 Chevrolet Corvette Z06, 2014-2015 Chevrolet Camaro Z28, 2013 Chevrolet Corvette 427, 2012 and newer Falcon F7
• 20-0232-PK: GM LS1, LS2, LS3, LS6, L76, and L99

Important Notes

• The plumbing kit covers LS1/LS2/LS3/LS6/L76/L99; the LS7's extra wide intake manifold means it is not a direct fit for those rails
• Factory or OEM-equivalent injectors required
• All fittings sold separately with the bare rails
