Honda S2000 06-09 LHD / 00-09 RHD Radium Catch Can Kits

Radium Engineering Catch Can Kits. Fitment: Honda S2000 06-09 LHD / 00-09 RHD. Available part numbers: 20-0099-FL, 20-0098-FL, 20-0097-FL.

Choose Your Kit

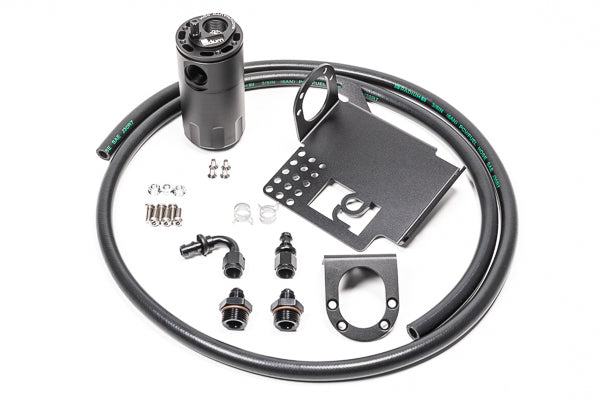

• PCV Catch Can Kit (20-0098-FL): inline with the 3/8in PCV valve, catching what gets drawn into the manifold at idle, cruise, and decel. Ships with two brackets, one of which goes unused if the crankcase kit is also fitted.

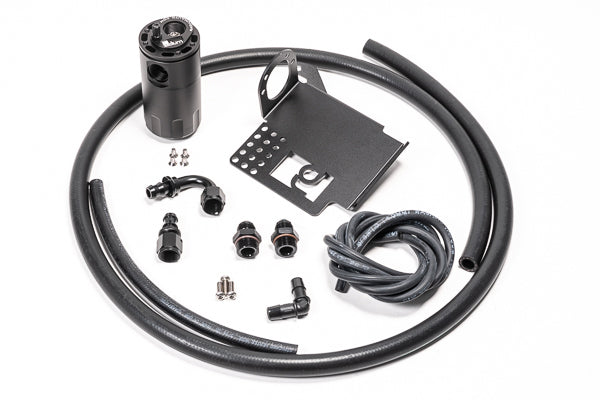

• Crankcase (CCV) Catch Can Kit (20-0097-FL): inline with the 1/2in valve cover breather port, catching what gets pulled into the intake pipe at wide open throttle

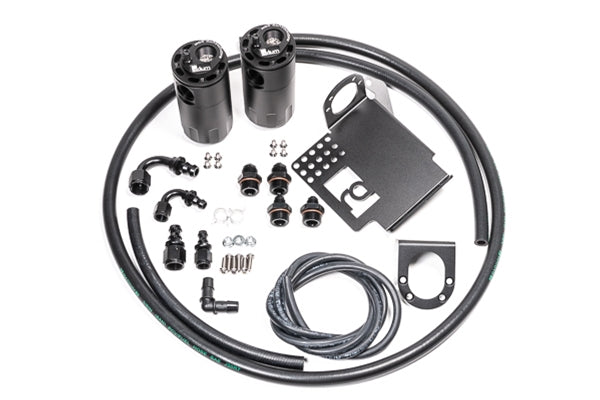

• Dual Catch Can Kit (20-0099-FL): both kits together, Radium's recommendation for complete protection

Features

• Patented Fluid Lock system preventing reservoir overfill
• 7 fluid ounce billet can with integrated condenser and O-ring sealed dipstick
• Large 10AN ORB inlet and outlet ports, 4AN ORB drain port
• 2-step oil separation baffling
• S2000-specific laser cut powder coated mounting brackets
• Anodized aluminum hose ends and adapter fittings, 6AN on the PCV kit and 8AN on the crankcase kit
• Stainless steel mounting hardware

Kit Includes

• PCV kit: billet catch can with condenser and dipstick, S2000-specific and universal powder coated brackets, anodized 6AN hose ends and adapter fittings, 3/8in PCV rubber hose, OEM spring hose clamps, stainless hardware
• Crankcase kit: billet catch can with condenser and dipstick, S2000-specific powder coated bracket, anodized 8AN hose ends and adapter fittings, 1/2in PCV rubber hose, vacuum and heater hose to eliminate the OEM hard tube loom, stainless hardware
• Dual kit: both of the above

Applications

• 2000-2009 Honda S2000 RHD, all years
• 2006-2009 Honda S2000 LHD (AP2)

Important Notes

• NOT compatible with 2000-2005 LHD S2000 models unless the cruise control module is removed. Radium builds a separate kit specifically for 00-05 LHD cars; verify your chassis and market before ordering.
