Multiple Subaru Fitments Radium Fuel Plumbing Kit

Radium Engineering Fuel Plumbing Kit. Fitment: Multiple Subaru Fitments. Available part numbers: 20-0629-03, 5.

Features

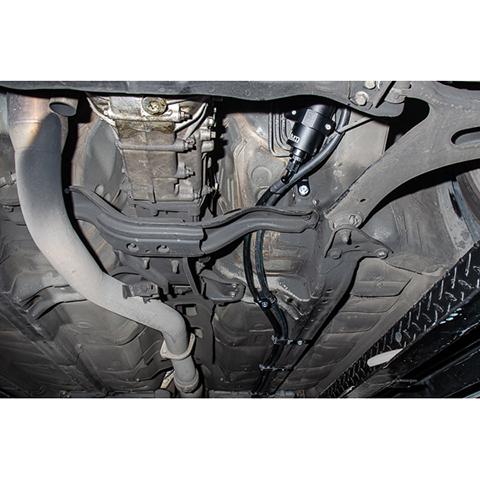

• 8AN PTFE feed line routes from the Radium hanger up to the underbody-mounted Radium high flow fuel filter
• 8AN hose continues from the filter to the fuel rails; 6AN return hose routes regulator return back to the hanger
• Filter element options: 10 micron stainless (20-0629-03, cleanable) or 6 micron microglass (20-0629-05, replaceable)

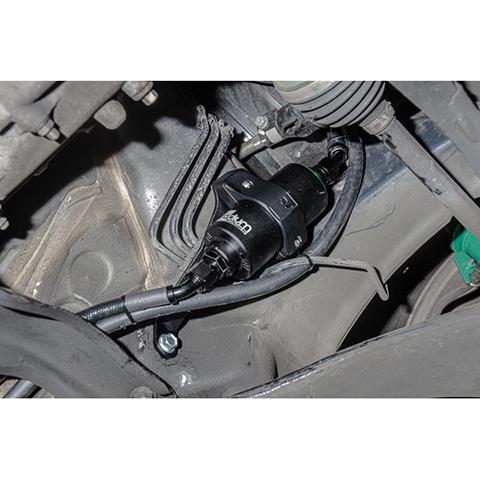

• Filter bracket mounts to existing chassis holes just inside the front left wheel; no drilling or permanent modification

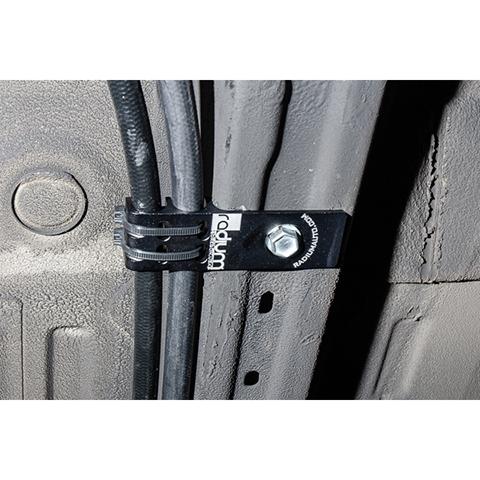

• Billet aluminum line retainers and 10AN ORB to 8AN male filter adapter fittings included
• All components safe for E85 and alternative fuels

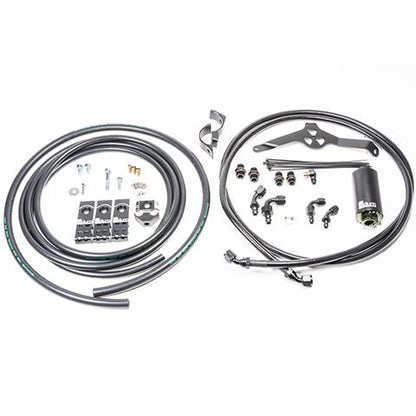

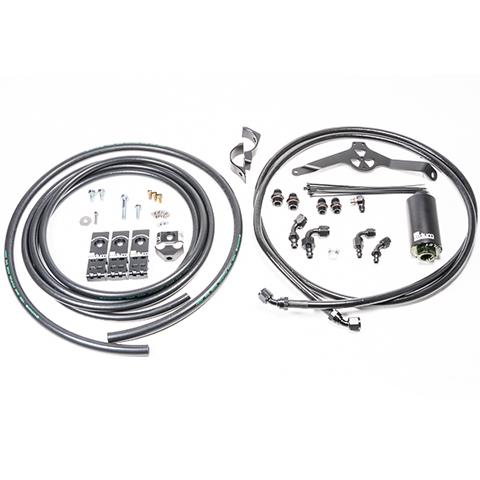

Kit Includes

• 1x Radium high flow fuel filter with selected element (stainless -03 or microglass -05)
• 2x 10AN ORB to 8AN male filter adapter fittings
• 8AN PTFE fuel feed hose (hanger to filter) and 8AN hose (filter to rails)
• 6AN return hose (regulator to hanger)
• Filter bracket, billet aluminum line retainers, and hardware

Applications

• 2008-2021 Subaru models running the Radium late model Subaru fuel pump hanger (sold separately)
• Covers the hanger's fitment range: 2008-2014 WRX, 2008-2021 STI, 2008-2014 Impreza and Forester, 2005-2009 Legacy and Outback, plus FA20 cars with required extras
• Aftermarket fuel rails and fuel pressure regulator recommended
