Nissan S12 S13 S14 S15 / R32 R33 R34 Skyline Radium Fuel Filter Kit and Mount

Radium Fuel Filter Kit and Mount. Fitment: Nissan S12 S13 S14 S15 / R32 R33 R34 Skyline. Available part numbers: 20-0585-03, 20-0585-05, 20-1585.

Choose Your Kit

• Stainless filter, 10 micron (20-0585-03): stainless steel mesh element, serviceable
• Microglass filter, 6 micron (20-0585-05): finer filtration, element is not serviceable
• Fuel filter mount only (20-1585): 2-piece clamp and hardware, no filter or fittings

Features

• Mounts to factory chassis studs
• Formed anodized aluminum bracket with billet anodized 2-piece clamp
• Clamp diameter 60mm (2.36in)
• Anodized aluminum filter housing and fittings
• Large 6AN rubber fuel hose with PushLok hose end for 6AN rails
• Zinc plated locking nuts and stainless steel bolts
• Withstands alternate fuels including methanol, ethanol, and E85

Kit Includes

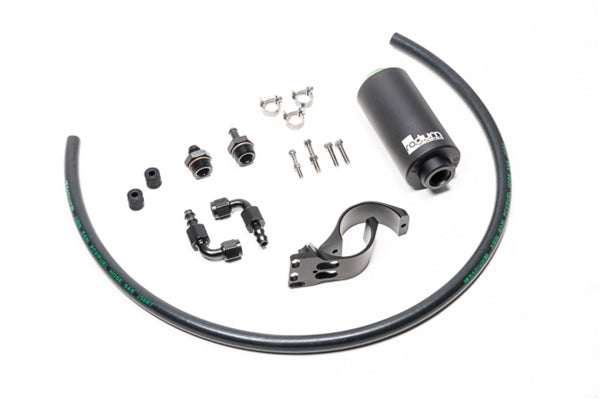

• Filter kits: anodized filter housing with selected element, anodized 2-piece clamp, anodized fittings, large 6AN rubber fuel hose, PushLok hose end for 6AN rails, stainless hardware

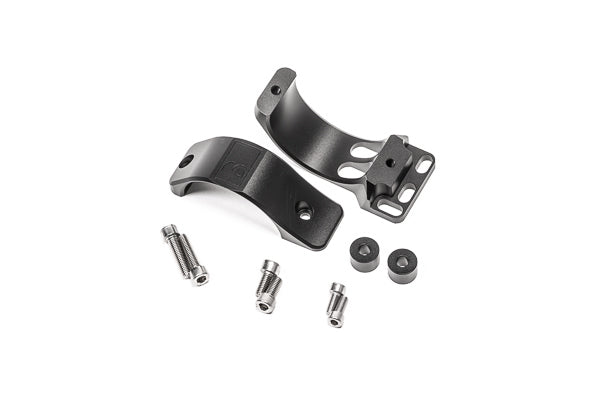

• 20-1585: anodized 2-piece clamp and stainless hardware only
• NOT included with the mount: the fuel filter, lines, and fittings

Applications

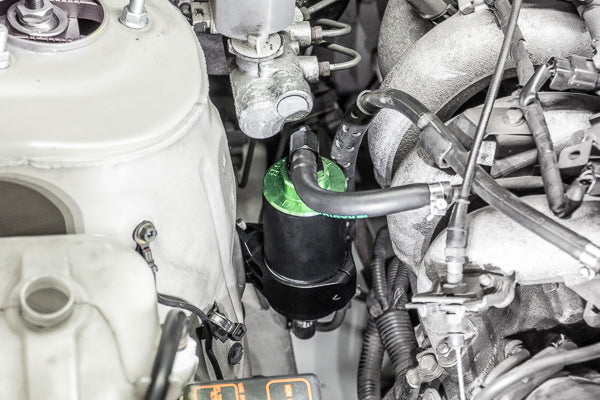

• Nissan S13 Silvia, 180SX, 200SX, and 240SX, all models, trims, RHD and LHD
• Nissan S14 Silvia, 200SX, and 240SX, all models, trims, RHD and LHD
• Nissan S15 Silvia and 200SX, all models, trims, RHD and LHD

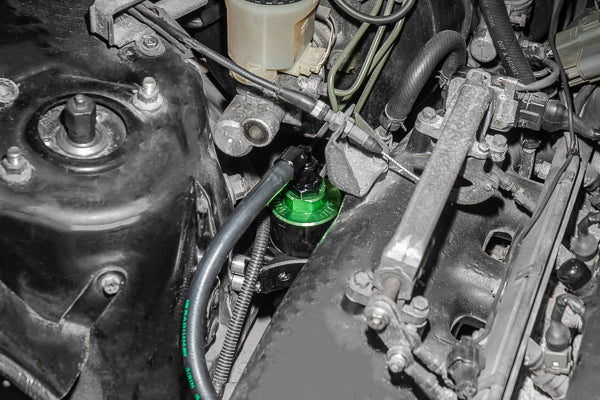

• Nissan R32, R33, and R34 Skyline, all models, trims, RHD and LHD
• Nissan S12 Silvia, 180ZX, 190SX, 200SX, and Gazelle, all models, trims, RHD and LHD
• Nissan S130 280ZX, all models, trims, RHD and LHD

Important Notes

• The 10 micron stainless element is serviceable; the 6 micron microglass element is not
• The 20-1585 mount does not include a filter, lines, or fittings
