Nissan S13 / R32 Excluding GT-R Radium Fuel Pump Hanger

Radium Fuel Pump Hanger. Fitment: Nissan S13 / R32 Excluding GT-R. Available part numbers: 20-0730-00, 20-0732-00.

Choose Your Version

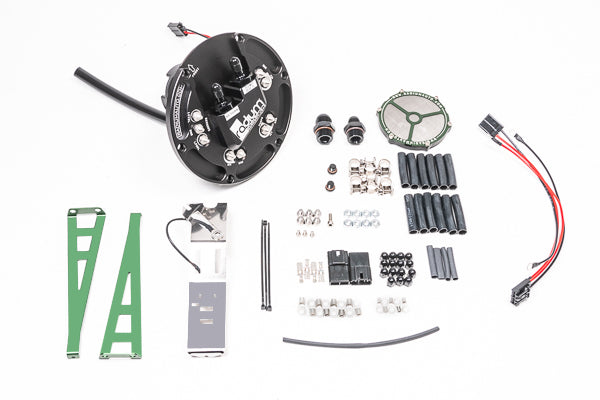

• Fits Walbro GSS342 / AEM 50-1000 / AEM 50-1200 (20-0730-00): the brushed pump package

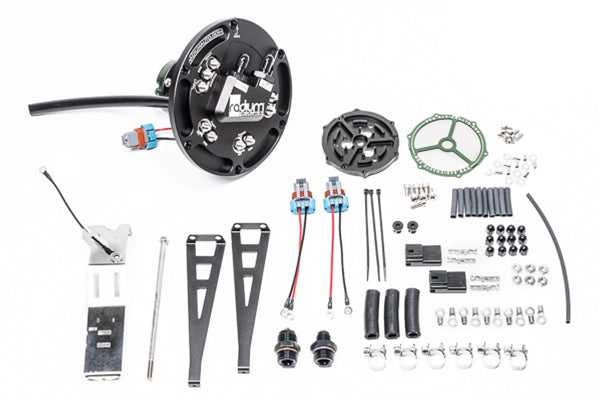

• Fits Walbro F90000267 / 274 / 285 (20-0732-00): the DCSS 39/50 E85 pump package

Features

• Drop-in replacement for the OEM pump module, 1 to 3 pumps
• Merged 8AN ORB female pump outlet and 8AN ORB female return port on the top plate
• Integrated check valves permitting fuel pump staging

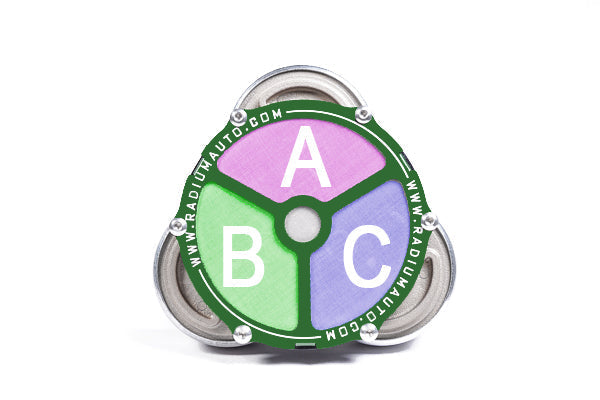

• Three independent filtration chambers with mesh inlet filtration
• Adapter fittings for both the factory fuel lines and aftermarket AN hose, machined low to clear the unibody
• Anti-rotation stainless electrical studs, hermetically sealed, with non-conductive acorn nuts
• ETFE insulated in-tank wiring
• Anodized aluminum, gasoline, methanol, and E85 compliant

Kit Includes

• Partially assembled fuel pump hanger
• All components to install 1 to 3 compatible pumps
• Adapter fittings for factory fuel lines and aftermarket AN hose
• Electrical parts kit for wiring at the top hat
• NOT included: fuel pumps, wiring kits, and plumbing kit

Applications

• Nissan S13 Silvia, 180SX, 200SX, and 240SX, all models, trims, RHD and LHD
• Nissan R32 Skyline, all RHD and LHD, excluding GT-R

Important Notes

• NOT for the R32 Skyline GT-R
• Fuel pumps sold separately; some assembly required
