Nissan S13 Silvia 180SX 240SX Radium Catch Can Kits

Radium Engineering Catch Can Kits. Fitment: Nissan S13 Silvia 180SX 240SX. Available part numbers: 20-0727-FL, 20-0726-FL, 20-0725-FL.

Choose Your Kit

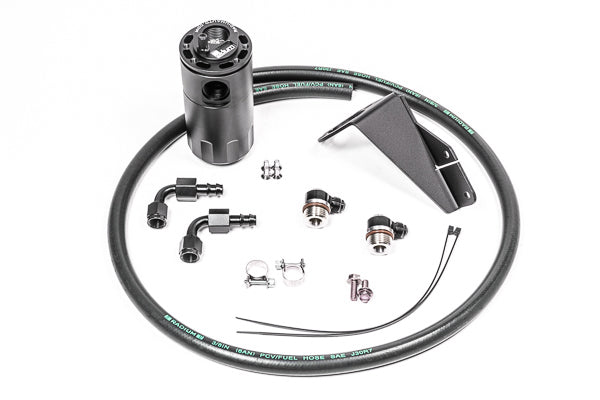

• PCV Catch Can Kit (20-0725-FL): mounts to threaded bosses on the RH strut tower just clear of the fuel filter, inline between the PCV valve and intake manifold

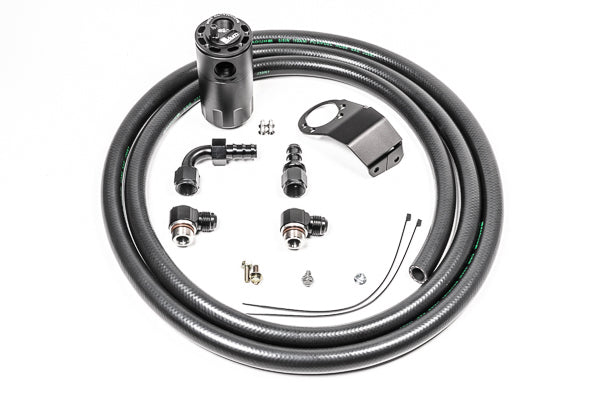

• CCV Catch Can Kit (20-0726-FL): mounts to 2 holes in the LH unibody near the firewall, designed to clear the wiper motor on RHD cars and the master cylinders on LHD, inline between the crankcase vent port and the intake pipe

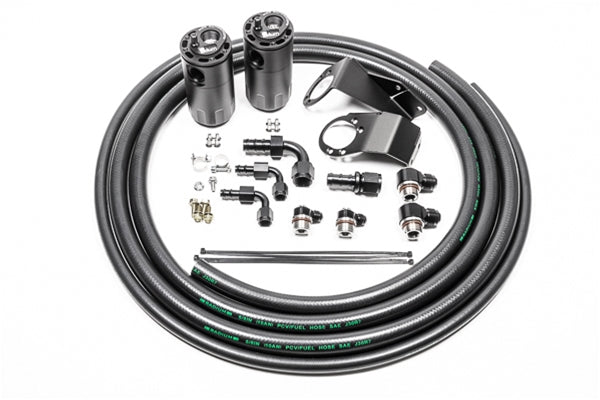

• Dual Catch Can Kit (20-0727-FL): both kits together for complete protection

Features

• Patented Fluid Lock system preventing reservoir overfill
• 7 fluid ounce baffled can with O-ring sealed dipstick for easy inspection
• Large 10AN ORB inlet and outlet ports, 4AN ORB drain port
• 2-step oil separation baffling
• Nissan-specific mounting brackets, LHD and RHD aware
• AN adapter fittings, hose ends, Radium PCV hose, and stainless steel hardware
• PushLok hose ends requiring no clamps

Kit Includes

• Baffled Fluid Lock oil catch can, or two cans on the dual kit
• Nissan-specific mounting bracket(s)
• AN adapter fittings and hose ends
• Radium PCV hose and cable zip ties
• Stainless steel hardware

Applications

• Nissan S13 240SX, all models, trims, RHD and LHD
• Nissan S13 Silvia, 180SX, and 200SX, all models, trims, RHD and LHD, excluding CA18DET

Important Notes

• NOT compatible with CA18DET powered Silvia, 180SX, or 200SX models
• The CCV kit alone does not address blow-by from the PCV side of the crankcase; the two kits are complementary
