Nissan S14 S15 R33 R34 Radium Fuel Hanger Plumbing Kit

Radium Fuel Hanger Plumbing Kit. Fitment: Nissan S14 S15 R33 R34. Available part numbers: 20-0702-03, 20-0702-05.

Choose Your Kit

• Stainless filter (20-0702-03): cleanable stainless element
• Microglass filter (20-0702-05): microglass element

Features

• 8AN (1/2in) feed hose from hanger through the fuel filter
• 6AN (3/8in) return hose from the regulator to the hanger return port
• 8AN and 6AN 90 degree PushLok hose ends for the rail and regulator connections
• Low profile 8AN and 6AN fuel hanger fittings for access cover clearance

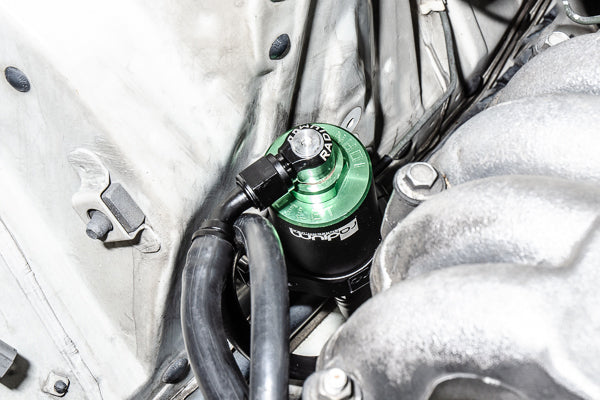

• Billet aluminum Nissan filter mount using the stock filter location
• Billet aluminum fuel and brake line retainers

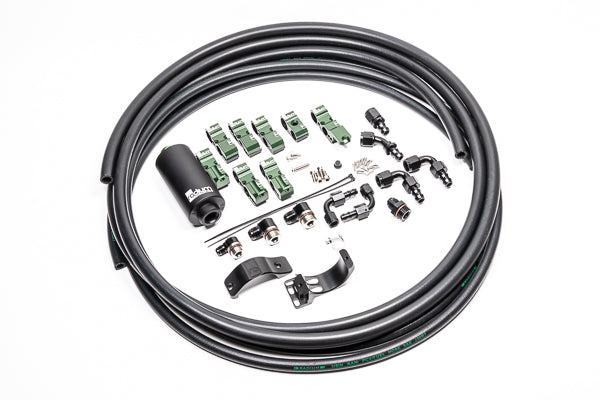

Kit Includes

• Fuel filter, stainless or microglass depending on selection
• Low profile 8AN and 6AN fuel hanger fittings
• 8AN fuel filter adapter fittings
• Billet aluminum Nissan filter mount
• 8AN and 6AN PushLok hose ends
• 8AN feed hose and 6AN return hose
• Fuel and brake line retainers, stainless steel hardware
• NOT included: fuel pump hanger, fuel pumps, fuel rail, fuel pressure regulator, and their AN fittings

Applications

• Nissan S14 Silvia, 200SX, and 240SX (all models, trims, RHD and LHD)
• Nissan S15 Silvia and 200SX (all models, trims, RHD and LHD)
• Nissan R33 and R34 Skyline (all models, trims, RHD and LHD)

Important Notes

• NOT designed for the stock fuel rail; an aftermarket rail with an 8AN male fitting is required
• Requires a Radium in-tank fuel hanger such as the 20-0630-00 or 20-0632-00, or a hanger with the 20-0700 or 20-0701 FHST add-on
