Nissan S15 Silvia 200SX Radium Catch Can Kits

Radium Engineering Catch Can Kits. Fitment: Nissan S15 Silvia 200SX. Available part numbers: 20-0637-FL, 20-0635-FL, 20-0636-FL.

Choose Your Kit

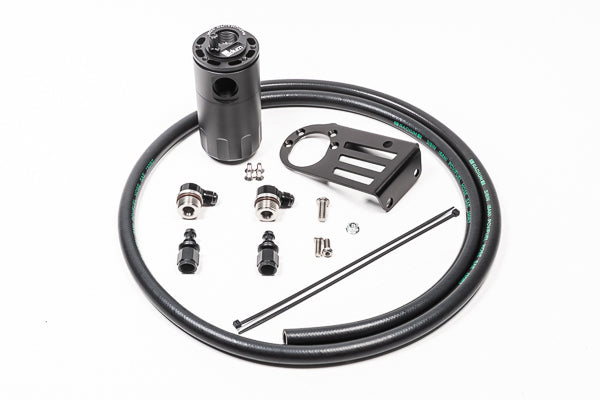

• PCV Catch Can Kit (20-0635-FL): mounts to 3 OEM threaded bosses in the RH corner near the firewall, inline between the PCV valve and intake manifold

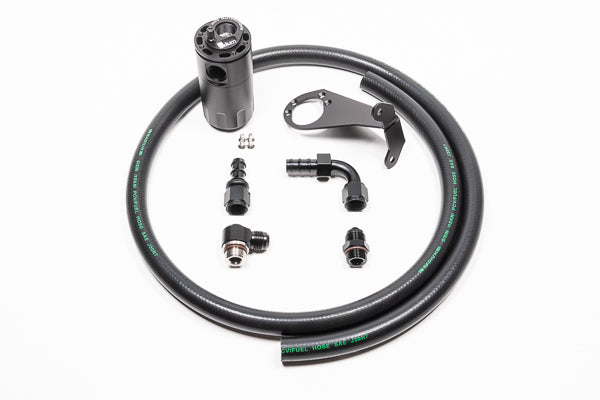

• CCV Catch Can Kit (20-0636-FL): mounts to 2 of the wiper motor mounts, inline between the crankcase vent port and the intake pipe

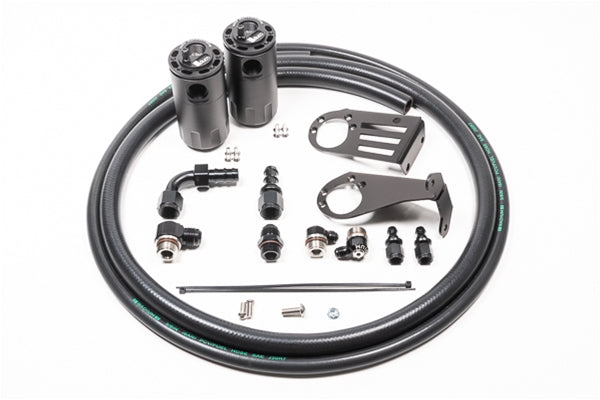

• Dual Catch Can Kit (20-0637-FL): both kits together, Radium's recommendation for complete protection

Features

• Patented Fluid Lock system preventing reservoir overfill
• 7 fluid ounce baffled can with O-ring sealed dipstick for easy inspection
• Large 10AN ORB inlet and outlet ports, 4AN ORB drain port
• 2-step oil separation baffling
• Nissan-specific mounting brackets
• AN adapter fittings, hose ends, Radium PCV hose, and stainless steel hardware

Kit Includes

• Baffled Fluid Lock oil catch can, or two cans on the dual kit
• Nissan-specific mounting bracket(s)
• AN adapter fittings and hose ends
• Radium PCV hose
• Stainless steel hardware

Applications

• Nissan Silvia S15
• Nissan 200SX S15

Important Notes

• The CCV kit alone does not address blow-by from the PCV side of the crankcase; the two kits are complementary
