By Radium Engineering
Radium 0-100psi Fuel Pressure Gauge
$47.45 - $75.00
Regular price
$47.45
Regular price
$49.95
Sale price
$47.45
Unit price
per
Couldn't load pickup availability
Availability:
In stock
SKU:
20-0029
Collections:
Regular price
$47.45
Regular price
$49.95
Sale price
$47.45

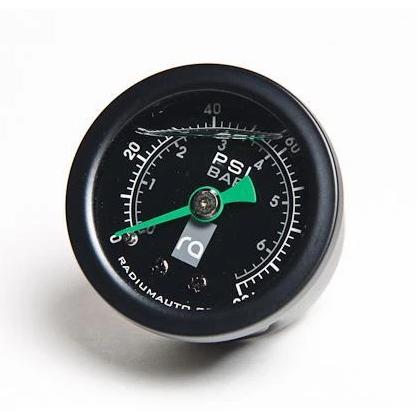

The Radium 0-100psi Fuel Pressure Gauge.
Features
- 0-100 psi (0-6.9 BAR) range with +/- 2% accuracy, suitable for all fueling applications
- Silicone-filled dial dampens needle vibration for easy reading (a small internal bubble is normal)
- Acrylic lens over a stainless steel 1-5/8" OD case with 1-3/4" OD bezel, black bezel and housing

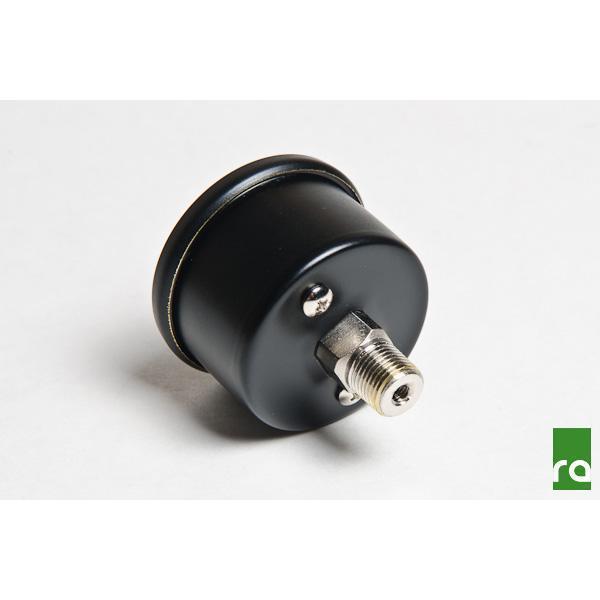

- Nickel plated male 1/8" NPT fitting
- Optional straight 8AN ORB adapter (20-0075) or 90-degree 8AN ORB adapter (20-0386) variants
Kit Includes
- 1x 0-100psi fuel pressure gauge with male 1/8" NPT fitting
- Adapter per selected variant: none (20-0029), straight 8AN ORB adapter (20-0075), or 90-degree 8AN ORB adapter (20-0386)
Applications
- Universal: any fuel system gauge port with a female 1/8" NPT thread
- Radium fuel rails, regulators, and components with 8AN ORB ports (adapter variants)
- Gasoline and other fueling applications within a 0-100 psi range
