Radium Fuel Pump Outlet Adapters

Radium Fuel Pump Outlet Adapters. Available part numbers: 20-0298, 20-0599.

Features

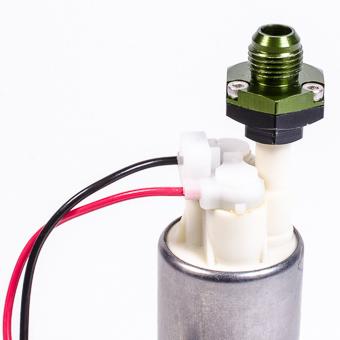

• Converts the hose-barbed outlet of compatible fuel pumps to 6AN male
• Two billet aluminum halves secured by stainless steel bolts clamping around the pump outlet
• Stainless steel retainer and FKM O-ring for a leak-free seal; all components E85 compatible
• 20-0298: green upper fitting, shortest profile without flow sacrifice, 0.42" shorter than 20-0599
• 20-0599: black upper fitting, taller profile for installations with room to spare
• Includes bolts, O-ring, and shims

Kit Includes

• 1x Billet aluminum 2-piece outlet adapter (selected height) with 6AN male upper fitting
• Stainless steel bolts and retainer, FKM O-ring, and shims
• Fuel pump NOT included

Applications

• Walbro/Ti Automotive F90000267, F90000274, F90000285
• Deatschwerks DW400
• Ti Automotive E5LM brushless (install electrical connector first)
• Verify pump outlet barb ridges are in excellent, round condition before ordering
