Subaru EG33 / EZ30 Radium Fuel Rails Top Feed

Radium Fuel Rails Top Feed. Fitment: Subaru EG33 / EZ30 / EZ36. Available part numbers: 20-0764-02, 20-0763-02, 20-0765-02.

Choose Your Version

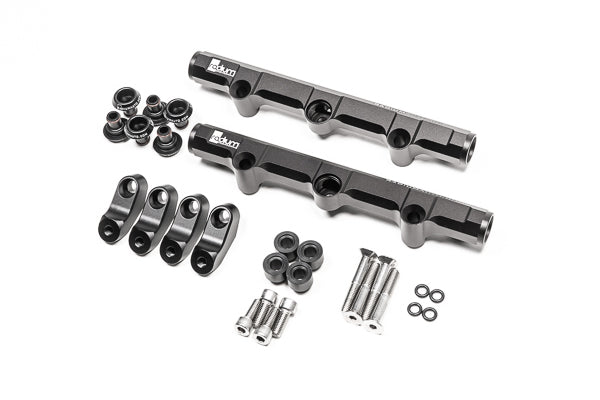

• Phase-I EZ30 (20-0764-02): for the original EZ30, identified by a single exhaust port per bank and Subaru's air-assist injection. Includes air-assist injector seats.

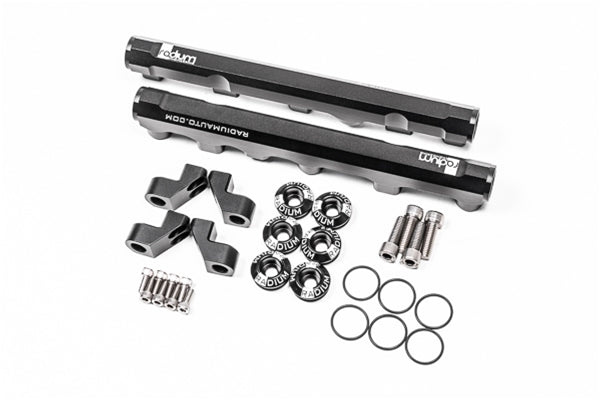

• EG33 (20-0763-02): top feed conversion for the Alcyone SVX. Includes 27mm injector seats.

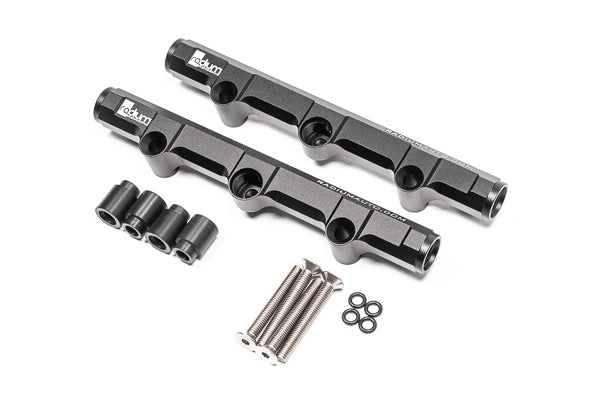

• Phase-II EZ30 and EZ36 (20-0765-02): an upgrade rail, AVCS compatible with clearance at the solenoid.

Features

• CNC machined 6061 aluminum, black anodized and laser etched
• Three 8AN ORB threaded ports per rail, six total
• Large internal bore supporting high power requirements
• 11mm thermal insulating press-in spacers
• Injector seats included on the EG33 and Phase-I EZ30 versions
• Compatible with all fuel types including E85

Kit Includes

• Black anodized laser etched aluminum fuel rails (x2)
• EG33: 27mm injector seats, fuel rail mounts, stainless mounting hardware
• Phase-I EZ30: Subaru air-assist injector seats, 11mm thermal insulating press-in spacers, stainless M8x1.25 mounting bolts
• Phase-II EZ30 / EZ36: 11mm thermal insulating press-in spacers, stainless mounting hardware
• NOT included: AN fittings, fuel injectors, regulator, and gauge

Applications

• EG33 (20-0763-02): Subaru Alcyone SVX
• Phase-I EZ30 (20-0764-02): 00-04 Outback H6, 00-03 Lancaster 6, 02-03 Legacy GT30 and RS30, 2002 Blitzen 6 Wagon
• Phase-II EZ30 and EZ36 (20-0765-02): 04-09 Legacy and Outback 3.0R, 10-19 Legacy and Outback 3.6R, 06-14 Tribeca

Important Notes

• EG33 requires universal 34mm injectors with 14mm O-rings top and bottom; WRX top feed injectors will NOT work
• Phase-I EZ30 aftermarket injectors must be 48mm with 11mm upper and 14mm lower O-rings, using the supplied injector seats
• Phase-II EZ30 only: plug the RH front rail port with a 14-0150 8AN ORB plug due to AVCS proximity
• All fittings sold separately
