Toyota Chaser / Mark II Radium Fuel Hanger Add-Ons

Radium Fuel Hanger Add-Ons. Fitment: Toyota Chaser / Mark II / Cresta. Available part numbers: 20-0941, 20-0441.

Choose Your Add-On

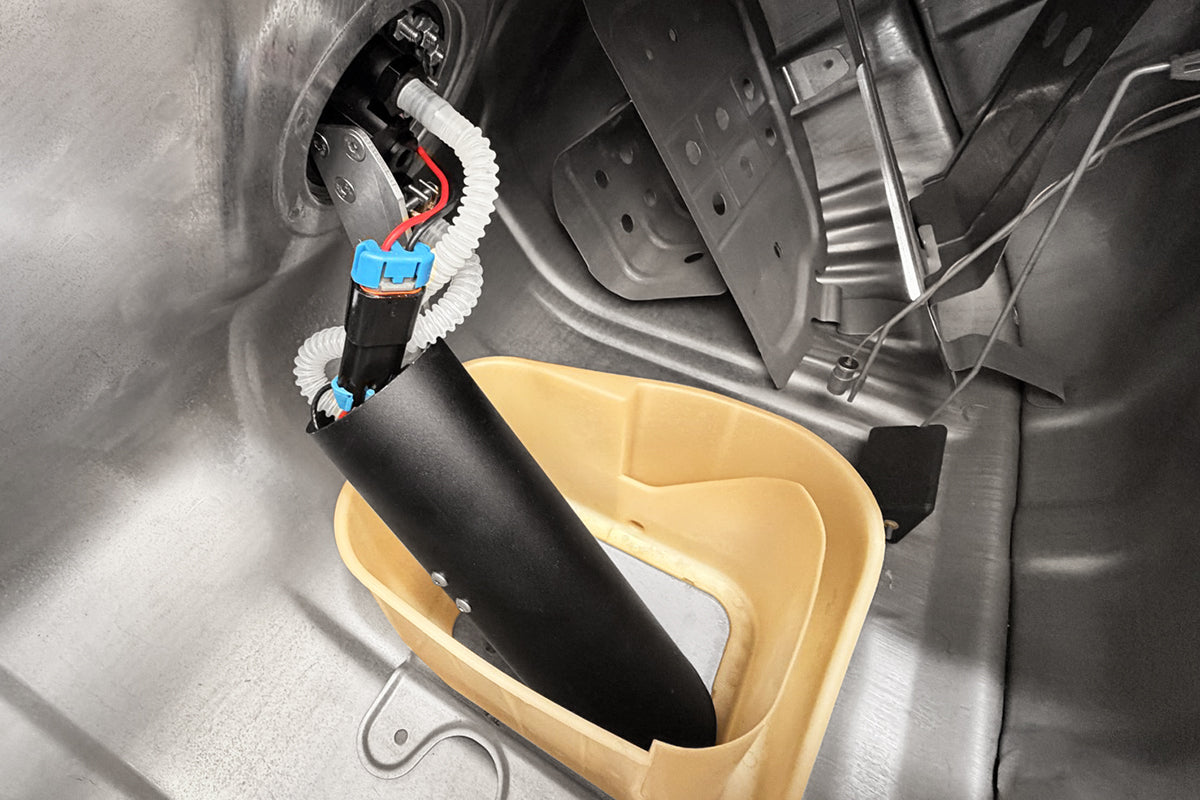

• Single pump fuel collector add-on (20-0941): additional starvation protection for one-pump builds, and the fix when the OEM basket has broken away from the tank
• Pump clamp for 41-43mm bodies (20-0441): required to run a DW440, DW810, Protec 11928, or Fuelab 49614 brushless pump with the collector

Features

• Collector designed for maximum volume, angled to trap fuel under acceleration

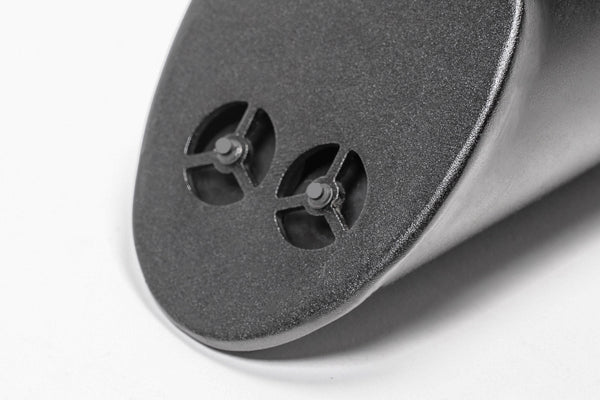

• Two 1-way fill valves, 355 LPH each
• Regulator return routed directly into the collector
• Compatible with the OEM basket for extra protection
• Shaped to pass through the small OEM tank access hole
• Pump clamp sized for 41 to 43mm diameter pump bodies

Kit Includes

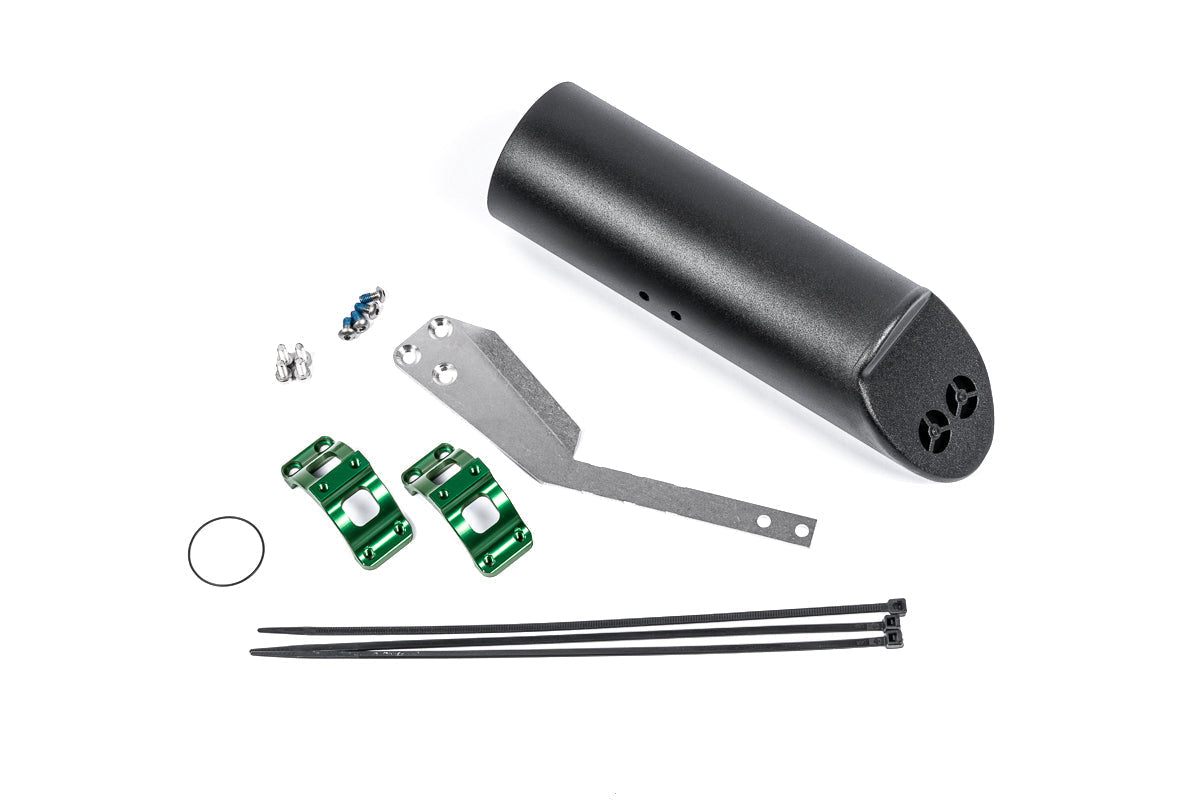

• 20-0941: fuel collector assembly with two 1-way fill valves and mounting hardware
• 20-0441: one pump clamp for 41-43mm bodies
• NOT included: the fuel pump hanger and fuel pumps

Applications

• Toyota Chaser, Mark II, and Cresta X90 and X100 fitted with a Radium 20-0940 fuel pump hanger

Important Notes

• The collector allows only ONE fuel pump; dual pump setups cannot be used with it
• The collector is only compatible with 39mm diameter fuel pumps
• Brushless DW440, DW810, Protec 11928, and Fuelab 49614 pumps require the 20-0441 clamp to work with the collector
• Both parts require the Radium 20-0940 hanger, sold separately
