Universal Radium Catch Can

Radium Engineering Catch Can. Universal fitment. Available part numbers: 20-0008, 5.

Features

• Machined from solid 6061 aluminum; 2 halves and all ports O-ring sealed, safe for pressurized applications
• Main inlet and outlet ports: 10AN ORB (7/8"-14) female threads; 4AN ORB bottom drain port

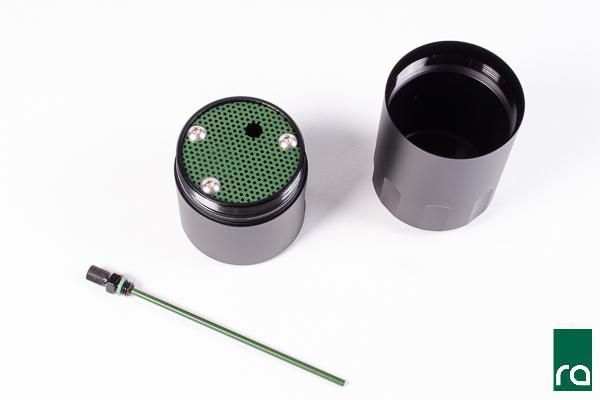

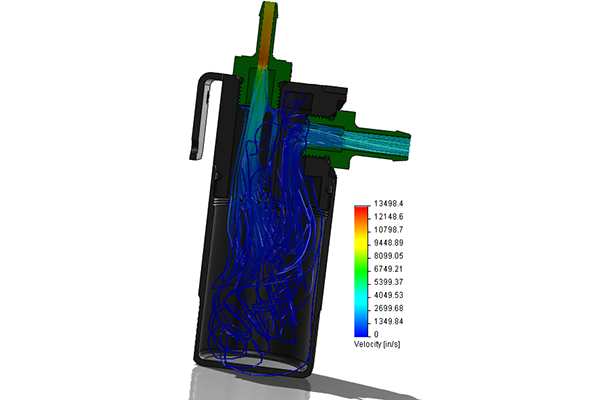

• Integrated stainless steel baffle plate plus 2 internal stainless air/oil separators
• Patented Fluid Lock mechanism prevents reservoir overfilling and traps collected fluids

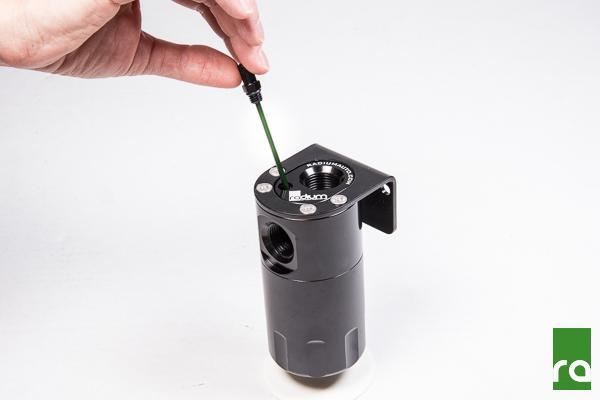

• Integrated M8x1.25mm threaded dipstick unscrews for quick level checks
• Single (20-0008-FL) or dual (20-0005-FL) configurations with universal mounting bracket(s)

Kit Includes

• 1x or 2x Fluid Lock catch can(s) per selected configuration
• Universal mounting bracket(s)
• Fittings and hose sold separately (10AN ORB adapters and bulk PCV hose available)

Applications

• Universal: vehicles without an application-specific Radium kit, custom builds, and engine swaps
• Naturally aspirated and forced induction; not for aftermarket crankcase vacuum pumps
• Dual configuration covers separate PCV and CCV circuits
