Universal Radium Compact Fuel Vent Charcoal Canister

Radium Compact Fuel Vent Charcoal Canister. Universal fitment. Available part numbers: 20-1827-08, 20-1827-12, 20-1827-00.

Choose Your Kit

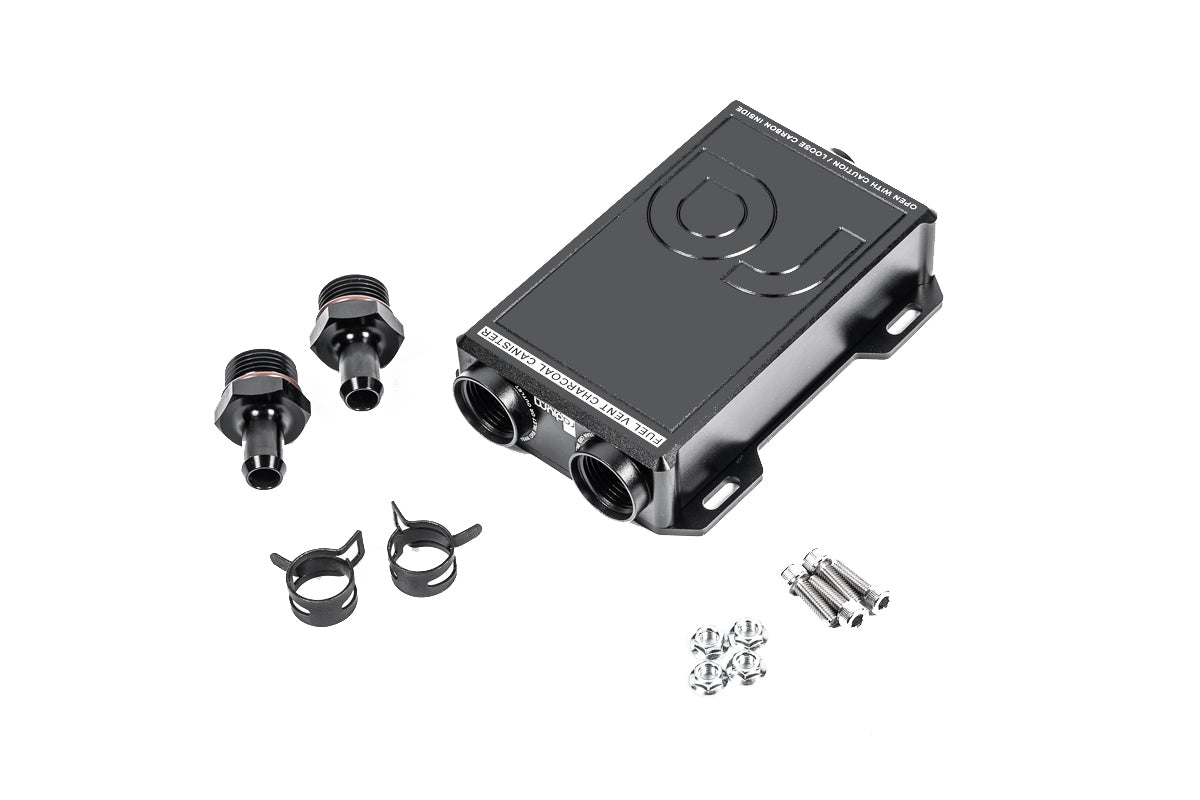

• 8AN, for 1/2in hose (20-1827-08): standard flow, pairs with the 20-0484-08 vent kit

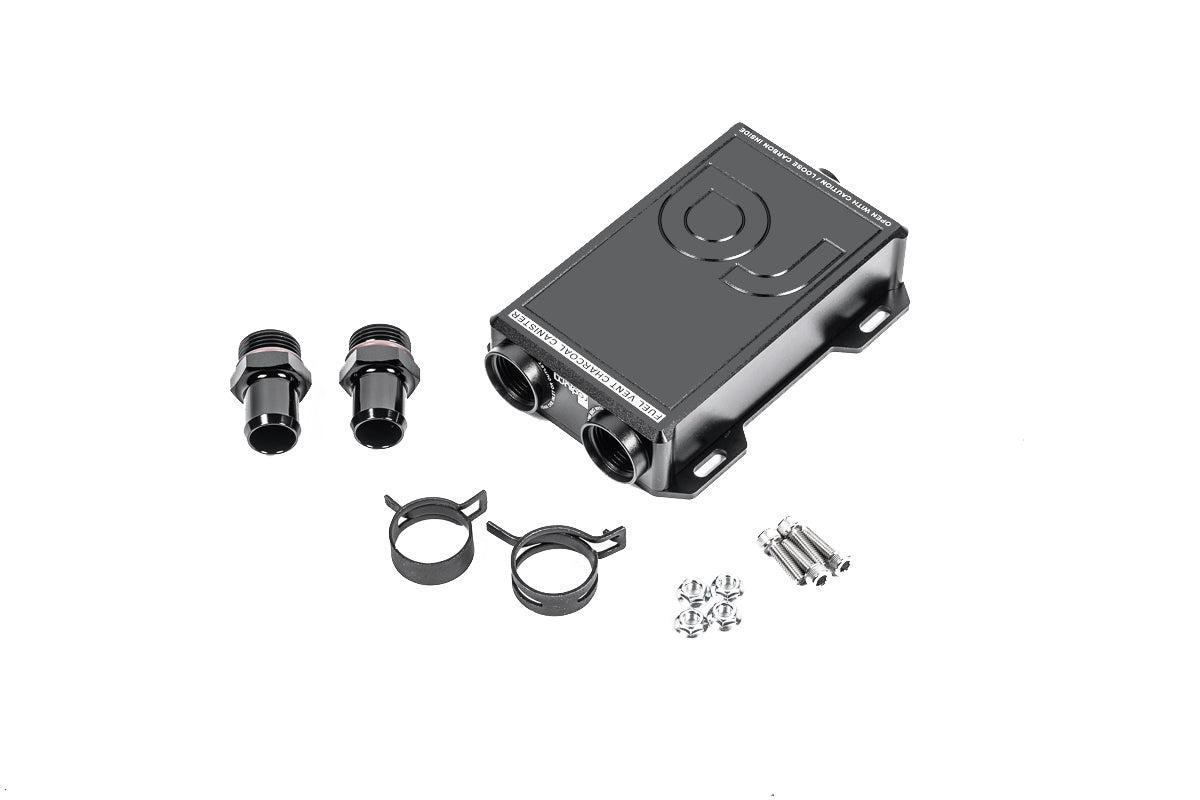

• 12AN, for 3/4in hose (20-1827-12): high flow, pairs with the 20-0484-12 vent kit

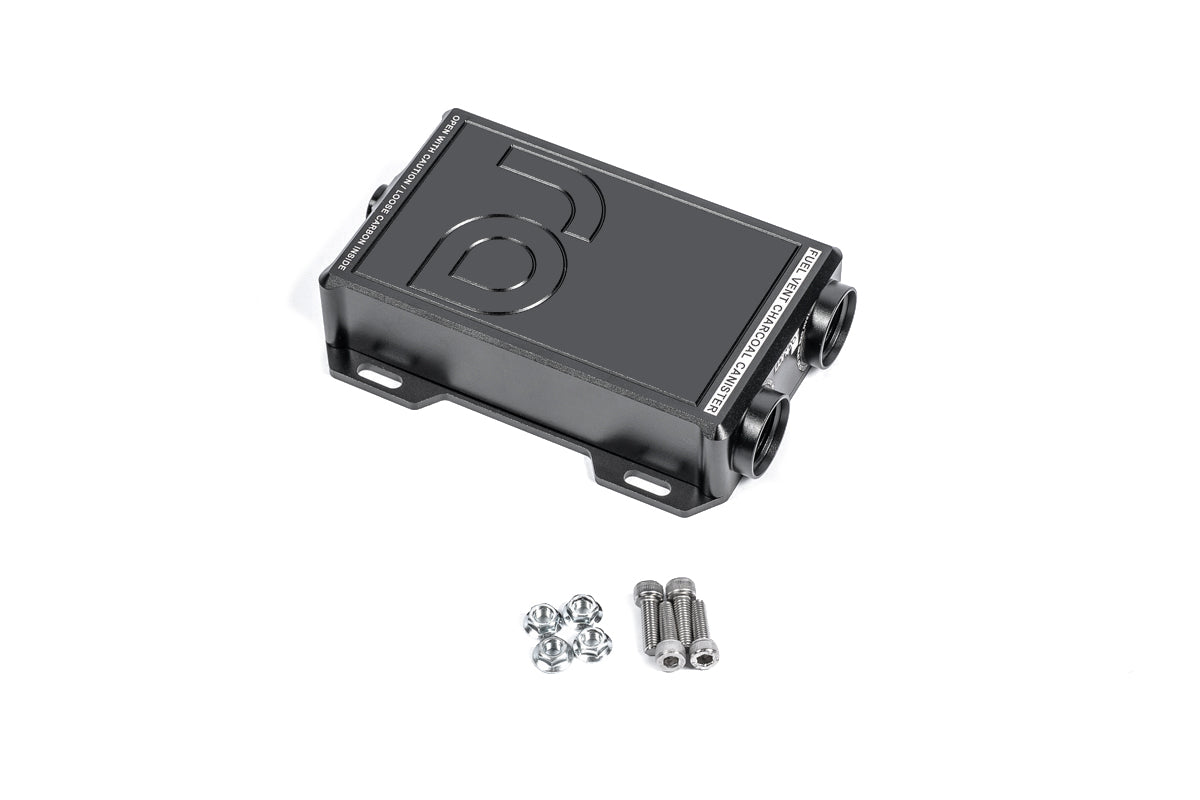

• Universal (20-1827-00): for classic tanks running 1/4in, 5/16in, or 3/8in vent line

Features

• CNC machined 6061 aluminum, type-II anodized
• Vibratory-packed activated carbon inside a 150 micron strainer and anodized baffle
• Two 16AN ORB (1-5/16in-12) female ports, usable interchangeably as inlet or outlet
• Two 4AN ORB (7/16in-20) drain ports at the base with preinstalled plugs

Kit Includes

• Compact charcoal canister with preassembled activated carbon, strainer, and baffle
• Barb or AN fittings sized to the selected configuration
• Preinstalled 4AN drain port plugs
• NOT included: vent hose, air filter, and additional adapter fittings

Applications

• Universal, any EFI or carbureted fuel tank or competition fuel cell vent system
• Designed to work alongside Radium fuel cell vent kits

Important Notes

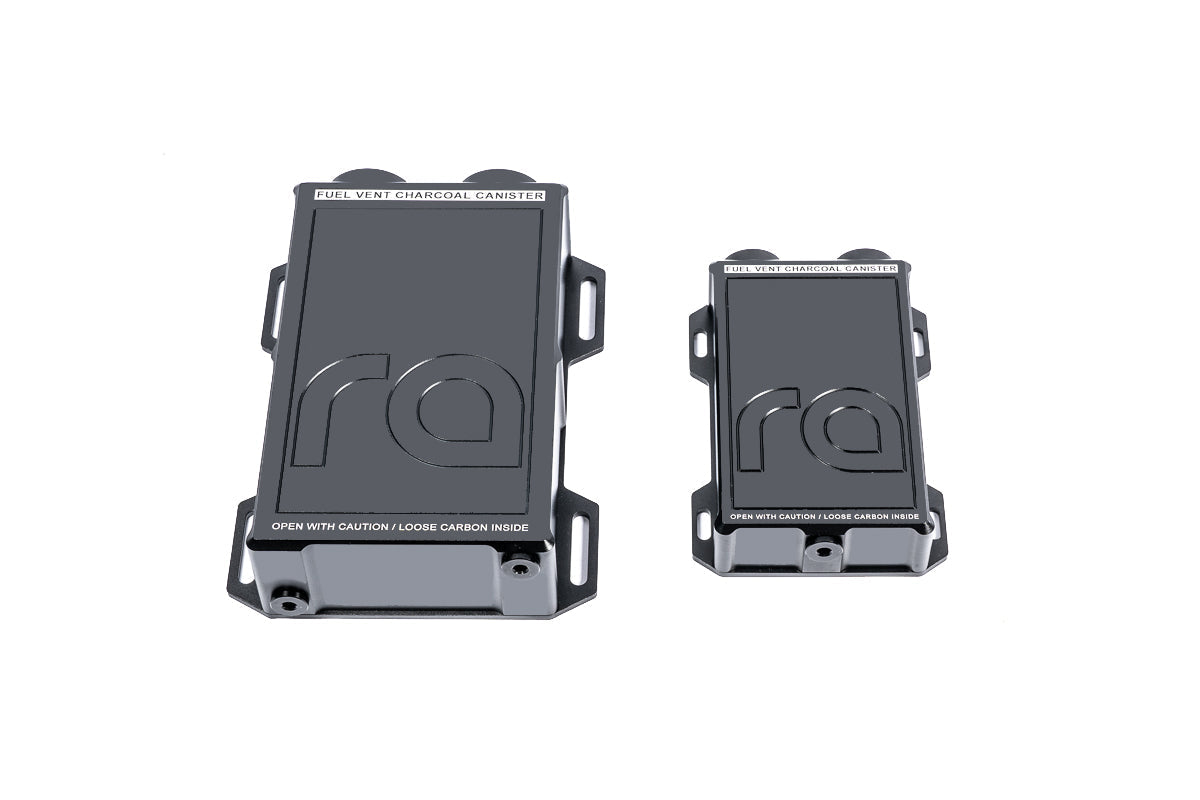

• Holds one fifth the carbon of the standard 20-1828 canister and requires more frequent service
• The activated carbon requires periodic replacement; use the 20-1827-SK service kit
• Vent hose upstream of the air filter must be routed higher than the fuel filler
