Universal Radium EFI and Spring Hose Clamps

Radium EFI and Spring Hose Clamps. Universal fitment. Available part numbers: 18-0030, 18-0031, 18-0032, 18-0056, 18-0058, 18-0036, 18-0037, 18-0038, 18-0040, 18-0041.

Choose Your Clamp

• EFI hose clamps: 9.5-11mm (18-0056), 11.5-13.0mm (18-0030), 12.5-14.0mm (18-0031), 13.5-15.0mm (18-0032), 14.5-16.0mm (18-0058)
• Spring clamps: 1/4in (18-0036), 5/16in (18-0037), 3/8in (18-0038), 5/8in (18-0040), 3/4in (18-0041)

Features

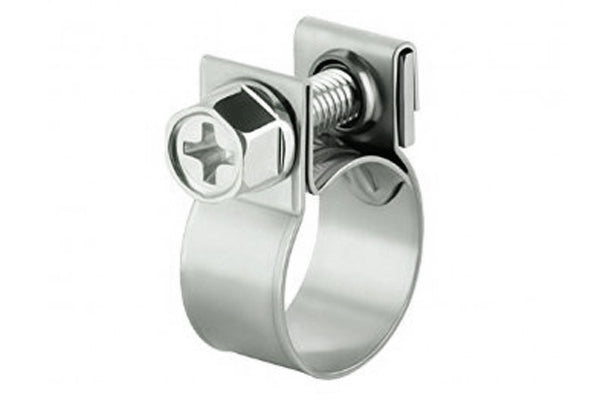

• EFI clamps: 304 stainless steel, bolt design creating a 360 degree seal, rolled edges to protect soft hose

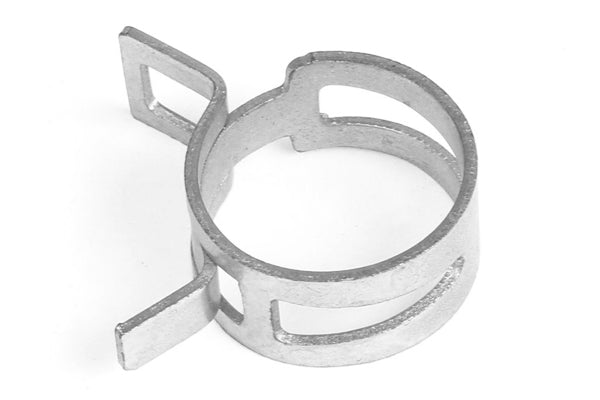

• Spring clamps: zinc plated steel, constant-tension spring-action band
• Neither type digs in and permanently damages hose the way worm-drive clamps do
• Sold each

Applications

• Universal, fuel, PCV, vent, coolant, and vacuum hose
• Replacements for clamps supplied in Radium fuel system parts and catch can kits

Important Notes

• Sold each; order the quantity your install requires
• Use EFI clamps on high pressure fuel connections and spring clamps on low pressure PCV and coolant lines
• Measure the hose over the barb to select the correct EFI clamp range
