Universal Radium FPD-XR Fuel Pulse Damper and ORB Adapter

Radium FPD-XR Fuel Pulse Damper and ORB Adapter. Universal fitment. Available part numbers: 20-0179, 14-0600.

Choose Your Part

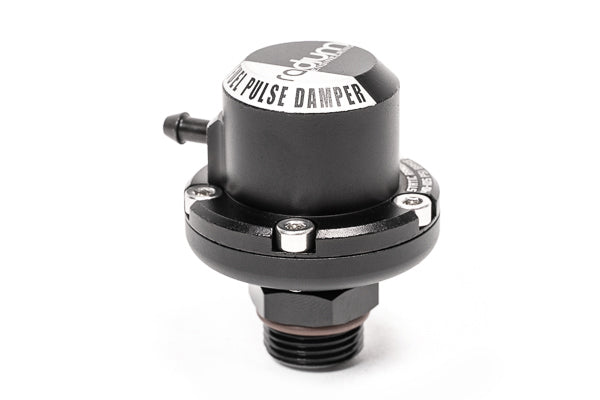

• FPD-XR, 3/8in NPT (20-0179): extended operating range, 40 to 105psi base static pressure
• 6AN ORB male to 8AN ORB female adapter (14-0600): adapts an 8AN ORB direct mount damper to a smaller 6AN port

Features

• Extended operating range: 40 to 105psi base static fuel pressure
• Anodized and laser engraved aluminum top, anodized body with 3/8in NPT male threads
• Vacuum and boost reference port for correct damping at elevated fuel pressures
• NPT tapered threads let the vacuum port be clocked to any position during tightening
• Safe for all fuel types including E85
• Includes 4mm ID rubber vacuum hose and vacuum hose Y-fitting

Kit Includes

• Anodized and laser engraved aluminum top
• Anodized aluminum body with 3/8in NPT male threads
• Stainless steel hardware
• 4mm ID rubber vacuum hose and vacuum hose Y-fitting

Applications

• Universal, any 3/8in NPT female threaded port
• The 14-0600 adapter suits 6AN ORB female ports with 8AN ORB dampers

Important Notes

• Dampers CANNOT be used with mechanical fuel pumps. These create pressure pulses far too strong for the internal diaphragm and will rupture it in short order.
• Dampers CANNOT be used with direct injection. Direct injection high pressure pumps will likewise rupture the diaphragm.
• NPT threads require sealant
• Check that you have space around the port for the damper body before ordering
