Universal Radium Fuel Vent Charcoal Canister

Radium Fuel Vent Charcoal Canister. Universal fitment. Available part numbers: 20-1828-08, 20-1828-12, 20-1828-00.

Choose Your Kit

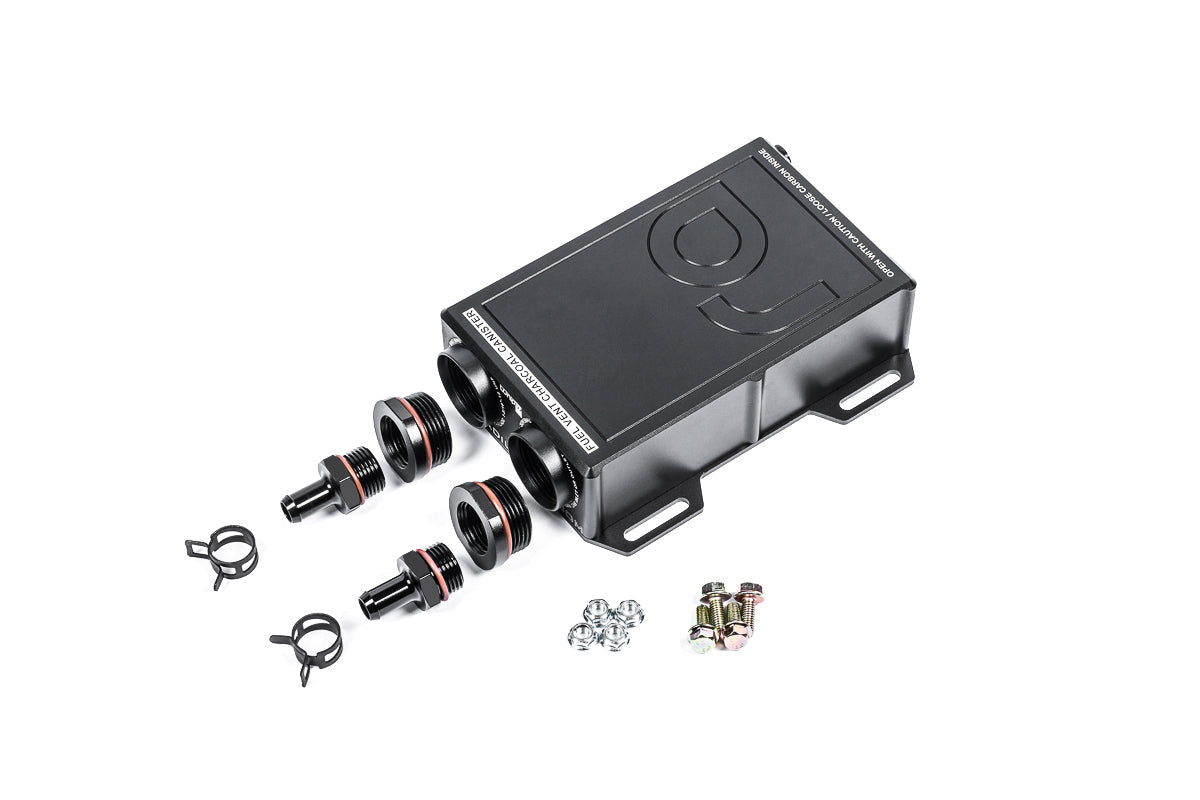

• For 1/2in hose (20-1828-08): standard flow, pairs with the 20-0484-08 vent kit

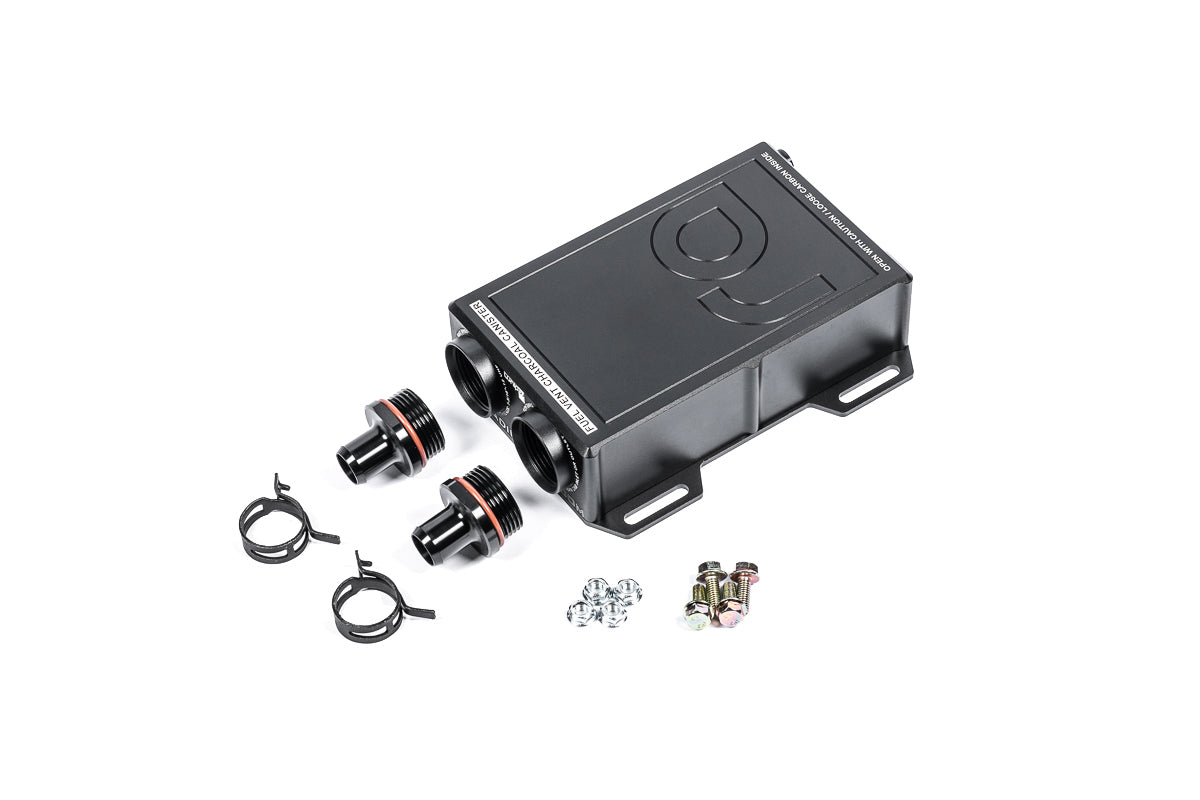

• For 3/4in hose (20-1828-12): high flow, pairs with the 20-0484-12 vent kit, and a 3/4in air filter attaches directly to the barb

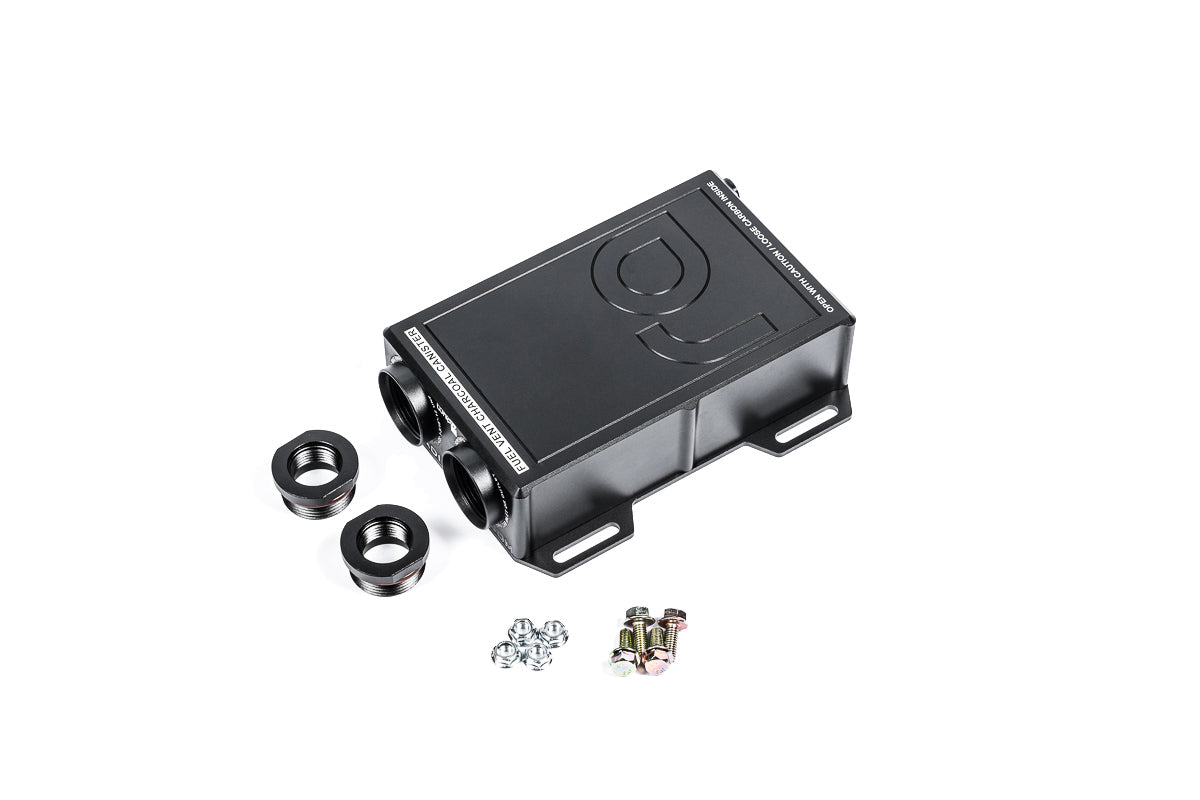

• Universal (20-1828-00): includes two 16AN ORB male to 10AN ORB female couplers for classic tanks running 1/4in, 5/16in, or 3/8in vent line

Features

• CNC machined 6061 aluminum, type-II anodized
• Vibratory-packed activated carbon inside a 150 micron strainer and anodized baffle, so no carbon debris escapes
• Two 16AN ORB (1-5/16in-12) female ports, usable interchangeably as inlet or outlet
• Two 4AN ORB (7/16in-20) drain ports at the base with preinstalled plugs

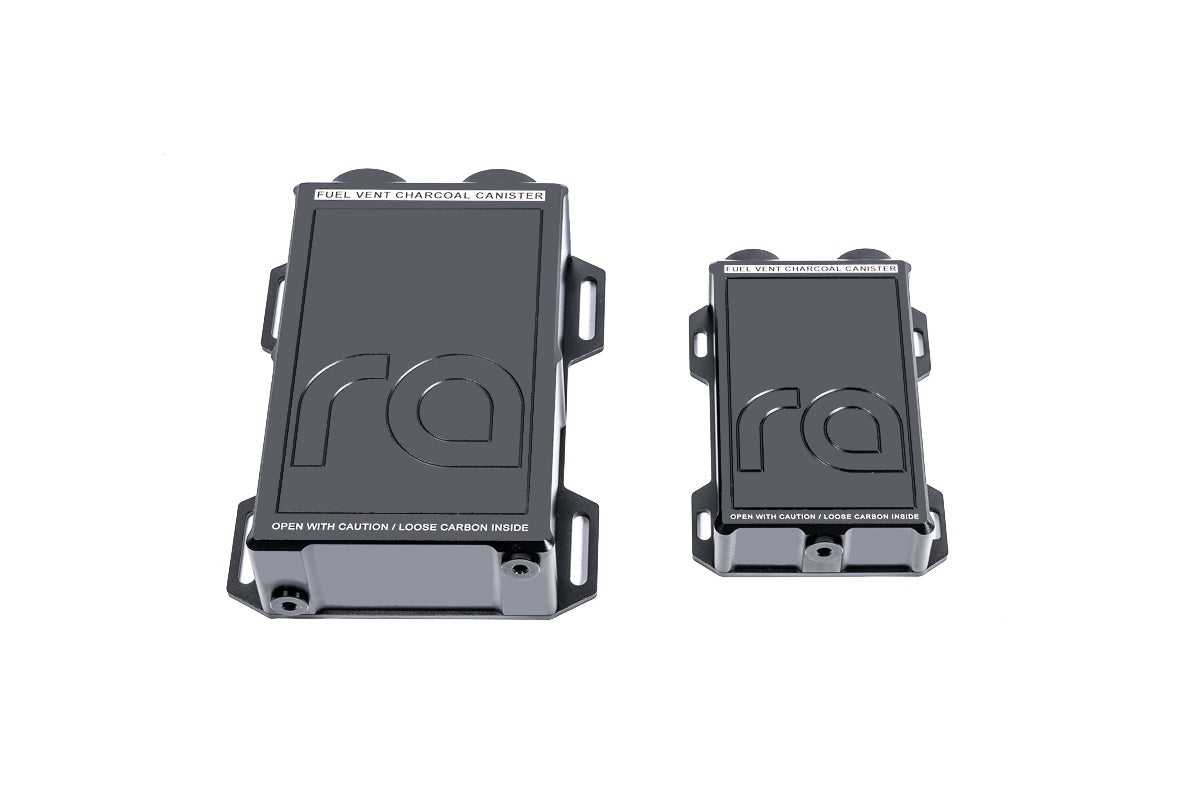

• Holds 5x the activated carbon of the compact canister, requiring less frequent service

Kit Includes

• Charcoal canister with preassembled activated carbon, strainer, and baffle
• Two 16AN ORB male to 10AN ORB female couplers (universal kit only)
• Barb fittings sized to the selected hose (08 and 12 kits)
• Preinstalled 4AN drain port plugs
• NOT included: vent hose, air filter, and additional adapter fittings

Applications

• Universal, any EFI or carbureted fuel tank or competition fuel cell vent system
• Designed to work alongside Radium fuel cell vent kits

Important Notes

• The activated carbon requires periodic replacement; use the 20-1828-SK service kit
• Vent hose upstream of the air filter must be routed higher than the fuel filler
