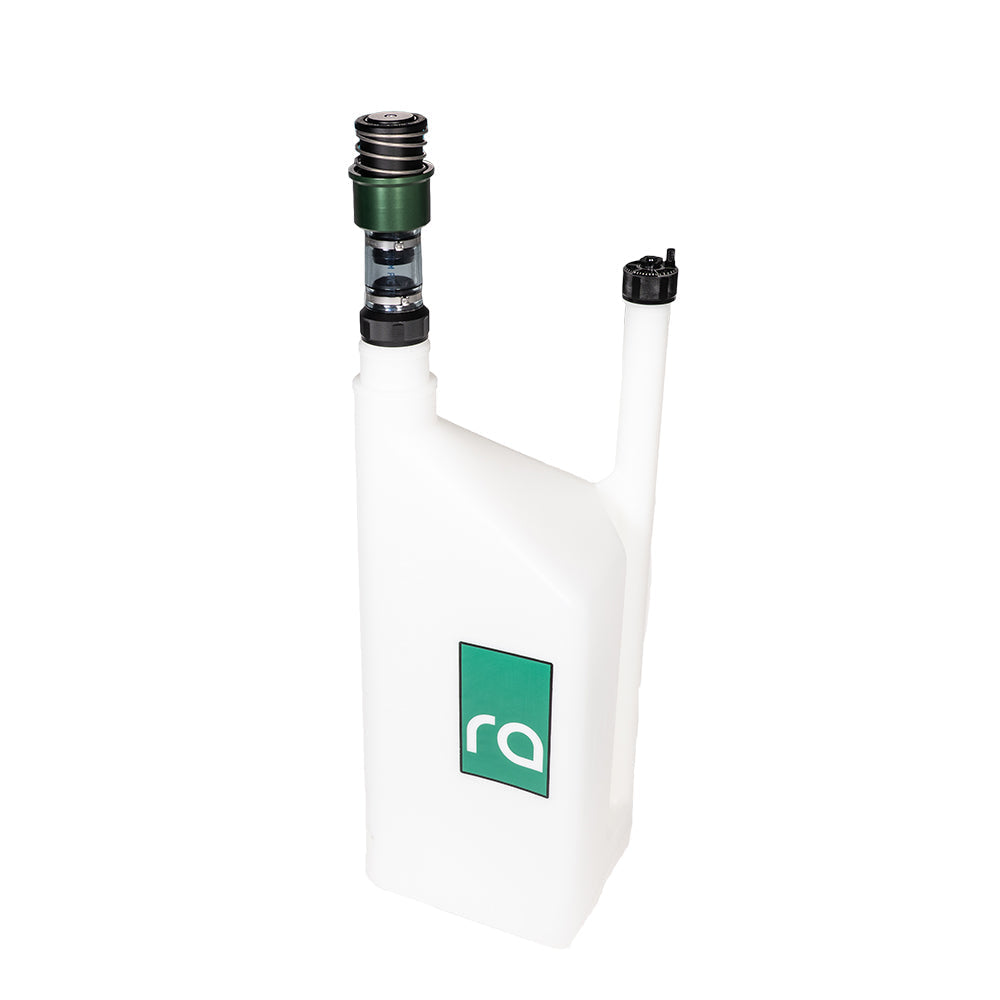

Universal Radium Quick Fill Dump Can 1.5in Dry Break and Filler Cap

Radium Quick Fill Dump Can 1.5in Dry Break and Filler Cap. Universal fitment. Available part numbers: 20-1697-01, 20-0997.

Choose Your Part

• Quick fill dump can, 1.5in dry break, PRV (20-1697-01)
• Dump can fuel filler cap (20-0997): threads onto the filler side for storage and transport

Features

• 5 gallon (19 litre) molded polymer can, semitransparent white
• 1.5in dry break probe for Radium 1.5in dry break receptacles
• PRV (pressure relief valve) venting the sealed side when warm; push the centre stainless valve to purge
• Clear short tube for fuel fill monitoring
• Large 1.675in OD / 1.375in ID vent tube, also usable for re-filling the can
• Graduation marks molded in US gallons on one side and litres on the other
• Vent cap with six fuel type indicators: unleaded, leaded, methanol, ethanol, pre-mixed, diesel
• Rectangular 9.5in x 9.5in footprint matching the fuel jug industry standard
• Integrated vent handle with finger grips, plus a molded grip in the base for inverted pouring
• Safe for leaded, unleaded, diesel, AV gas, methanol, ethanol, E15, and E85

Kit Includes

• 5 gallon dump can with clear fill monitoring tube
• 1.5in dry break filler probe with PRV
• Knurled aluminum pour and vent caps
• Plastic flip cap

Applications

• Universal, motorsport refuelling with Radium 1.5in dry break fillers

Important Notes

• NOT compatible with the discontinued 20-0497-00, 20-0497-01, or 20-0697-EDC dump cans

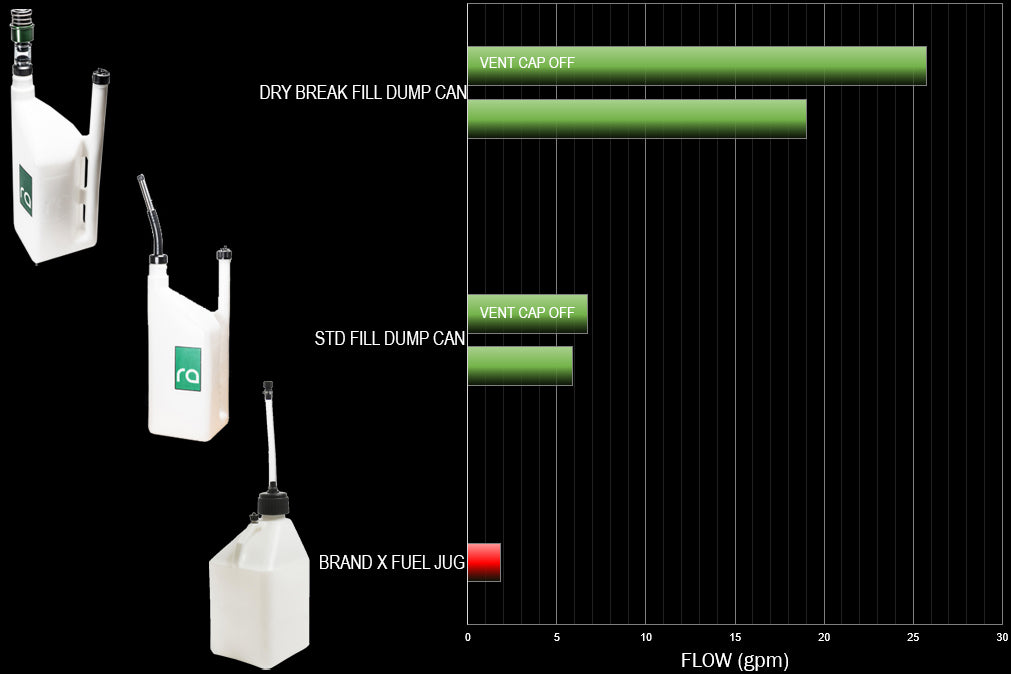

• Removing the vent cap speeds filling further but should be used with caution
• The pour spout can be cut to suit 2.5in and 3in dry breaks
