Universal Radium Remote Mount Vented Standard Filler

Radium Engineering Remote Mount Vented Standard Filler. Universal fitment. Available part numbers: 20-1005-V, 20-1105-V, 20-1205-V.

Features

• Body-mounted remote fuel filler with vented cap and roll-over protection
• Machined hose barb for 1.5" ID filler hose
• 4.75" OD, 4.25" PCD (5x M5 bolts), 4.1" total height; requires a fabricated 77mm (3.03") hole
• Ozone/flame resistant gasket, anodized aluminum nut ring, stainless M5 bolts
• Compatible with all fuel types

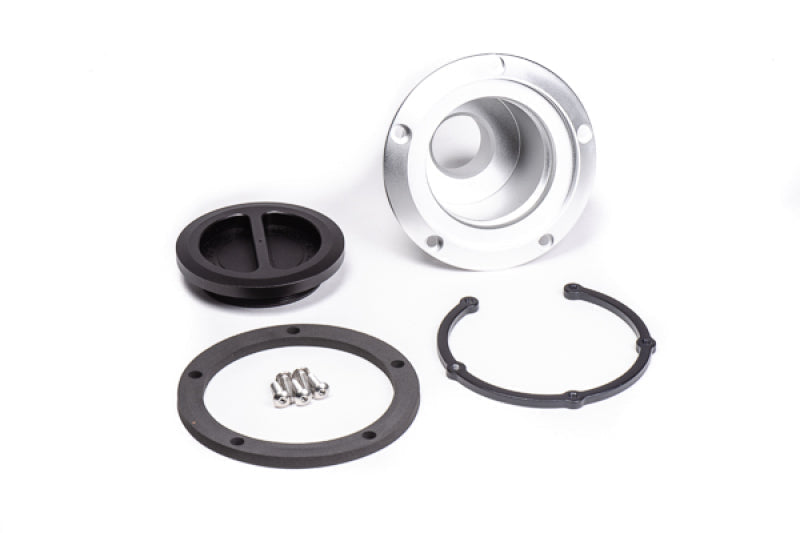

Kit Includes

• 1x Vented cap with roll-over protection
• 1x Flanged fill neck for 1.5" ID hose
• 1x Ozone/flame resistant gasket, 1x anodized aluminum nut ring
• Stainless steel M5 bolts
• Filler hose and tank-connection accessories NOT included

Applications

• Fuel cell and custom tank installations requiring a body-mounted remote filler
• Pairs with Radium fill necks, filler hose, and vent kits, sold separately
