Universal Radium Swing Valve Remote Mount Fuel Filler

Radium Swing Valve Remote Mount Fuel Filler. Universal fitment. Available part numbers: 20-1103, 20-1003, 20-1203.

Choose Your Version

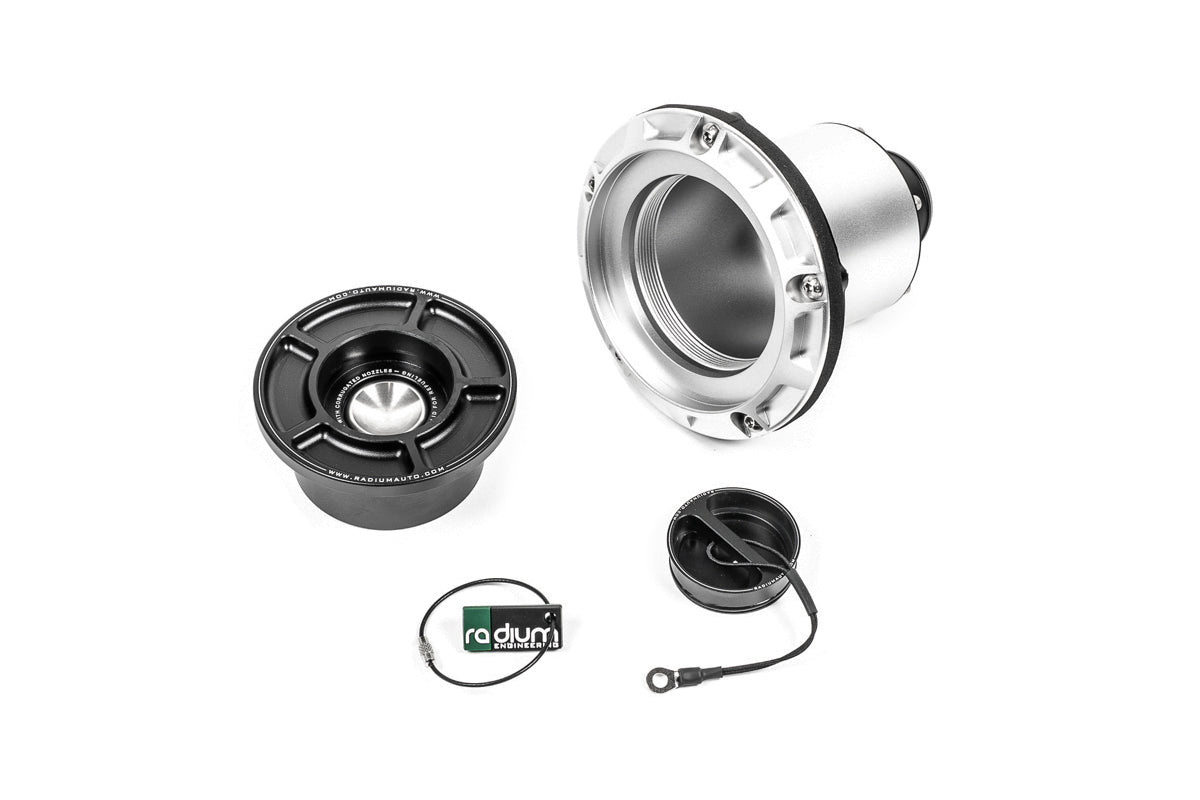

• 1.5in straight barb (20-1003): compact straight outlet for 1.5in filler hose

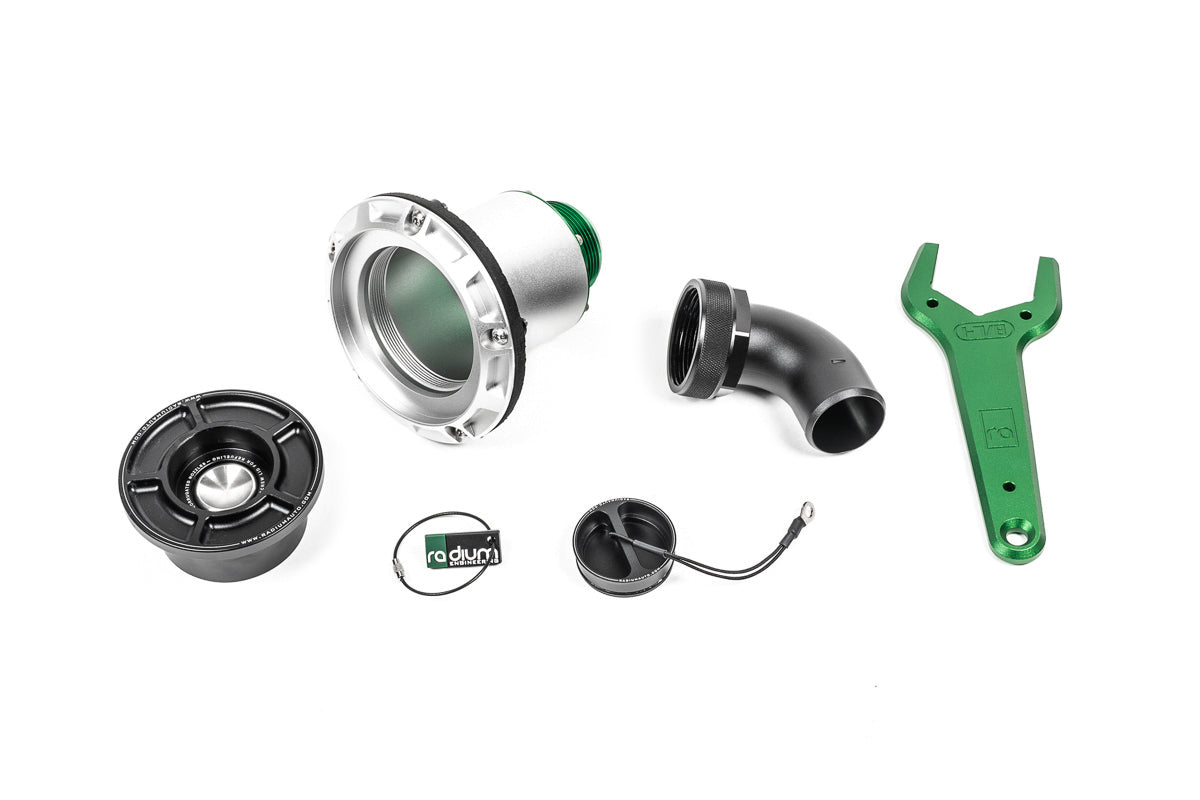

• 1.5in 24AN elbow (20-1103): 75 degree elbow that rotates to point any direction, and can be removed to attach 24AN filler hose. Includes B-nut and 1-7/8in wrench

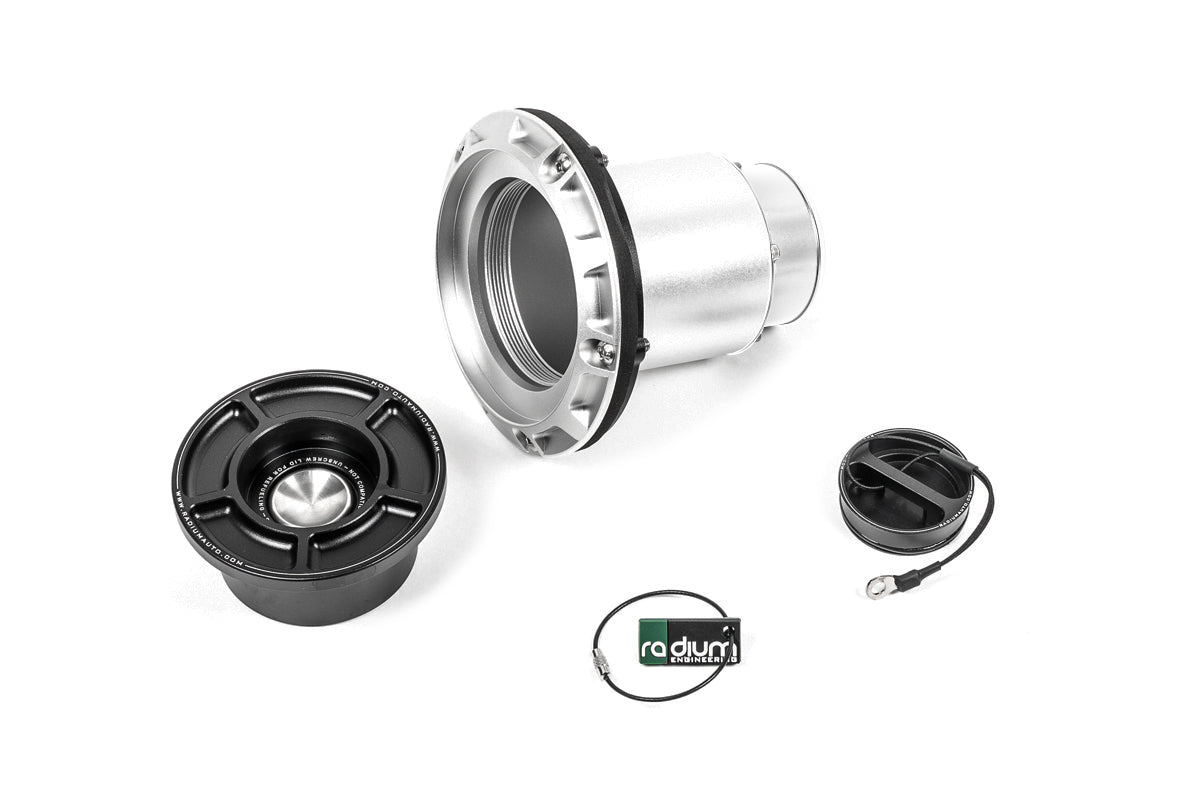

• 2.25in straight barb (20-1203): compact straight outlet for high volume 2.25in filler hose

Features

• Capless swing valve sealing on an FKM O-ring
• 30mm opening for gasoline and diesel nozzles
• Press-fit tethered dust cap
• Flange outer diameter 4.75in, bolt circle 4.25in PCD, five M5 bolts, total height 4.1in
• O-ring sealed interchangeable outlet adapter, six screws to swap
• Ozone and flame resistant gasket, anodized aluminum nut ring, stainless M5 bolts

Kit Includes

• Swing valve cap
• Flanged fill neck for the selected outlet size
• 24AN B-nut, elbow, and wrench (elbow version only)
• Ozone and flame resistant gasket, anodized aluminum nut ring, stainless steel M5 bolts
• Tether components
• NOT included: filler hose, fill neck for the tank end, and any tank connection accessories

Applications

• Universal remote mounting to an external body panel such as a fender

Important Notes

• Requires a 77mm (3.03in) hole to be fabricated in the mounting surface
• Does not include accessories to connect to the fuel tank or cell
• Can be upgraded to a dry break later using the 20-0549-V receptacle
