Universal Radium Triple Pump Block Service Parts

Radium Triple Pump Block Service Parts. Universal fitment. Available part numbers: 14-0386, 14-0406, 14-0437, 14-0785, 14-0786, 14-0787, 14-0788, 20-1533, 20-1534, 18-0051.

Choose Your Part

• Check valve, 6AN ORB to 8.5mm barb (20-1533)
• Check valve, 6AN ORB to 10mm barb (20-1534)

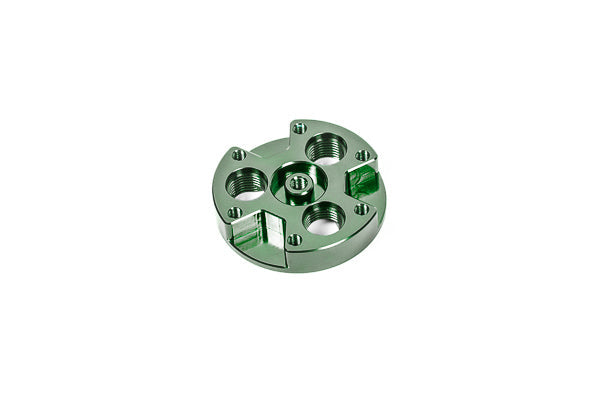

• Triple pump block, 6AN ORB ports, standard (14-0386)
• Triple pump block, 10mm barbs, standard (14-0406)
• Triple pump block, 8.5mm barbs, standard (14-0437)
• Triple pump block, 6AN ORB ports, reverse (14-0786)
• Triple pump block, 10mm barbs, reverse (14-0785)
• Triple pump block, 8.5mm ports, reverse (14-0787)
• Triple pump block, 8.5mm ports FCST, reverse (14-0788)
• Triple pump block gasket (18-0051)

Features

• Merges up to three fuel pump outlets
• Standard and reverse flow direction versions
• 6AN ORB, 10mm barb, and 8.5mm barb port styles
• FCST specific version available
• Check valves in both barb sizes

Applications

• Radium in-tank fuel pump hangers and surge tanks using a triple pump block

Important Notes

• Standard and reverse blocks are NOT interchangeable; match the part you are replacing
• Check valve requirement depends on the pump: 20-1533 for AEM 50-1230 and 50-1235, 20-1534 for Walbro F90000295 and Ti E5LM
• Replace the gasket whenever the block is disassembled
